Einleitung

Purchase a new motor brush. The sander should be unplugged from any power sources. Make sure you organize the removed screws, so you can reinstall them in the correct location.

  1. hQaMdfBYj1Gw53Yg
    hQaMdfBYj1Gw53Yg
    cOpcuT31rc61G4bH
    ITQqOVQWg6MUxAqx
    • Ensure that the power chord is not plugged into an outlet.

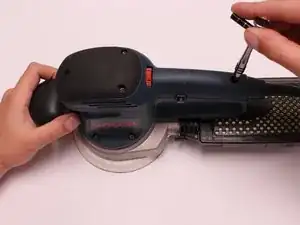

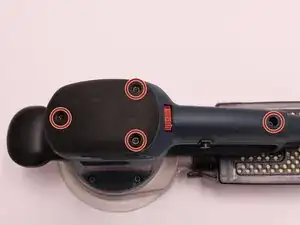

    • Using the T20 Torx Screwdriver, remove the four 15.6 mm screws securing the top cover to the sander.

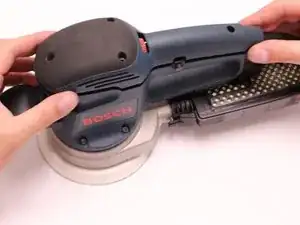

    • Lift the top cover off the sander.

  2. vRVxJhPjLFCEA4qR
    vRVxJhPjLFCEA4qR
    ZJrescrjBP2PSp4K
    jPpGqeZSrYBcF64y

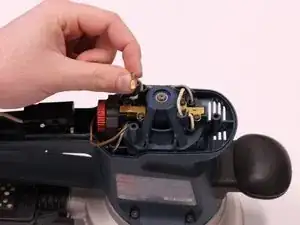

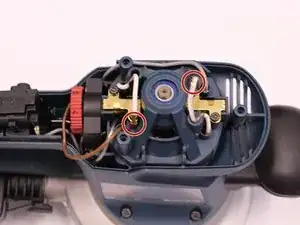

    • Remove the two white wires connected to each motor brush by pulling on the spade terminals.

  3. U3vBDumKROSOPvOA
    U3vBDumKROSOPvOA
    pWumwGjK4CWhTaEk
    qRjVCiFfy4RbbCV1

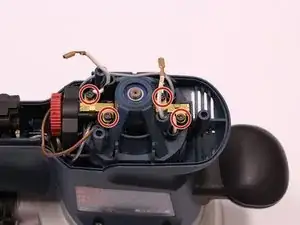

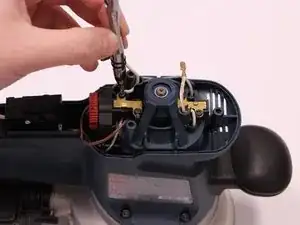

    • Using the T10 Torx Screwdriver, remove the four 9.7 mm screws securing the motor brushes to the housing.

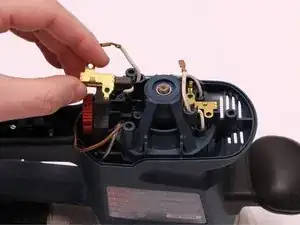

    • After the screws are removed, both motor brushes can be lifted out of their position by hand.

Abschluss

To reassemble your device, follow these instructions in reverse order.
