Einleitung
If the motor becomes faulty, it can be replaced in a simple manner. Bosch offers a new motor to purchase for the replacement. When disassembling the drill, make sure to have flat, clean working surface. Carefully follow this guide to replace the faulty motor.
-
-

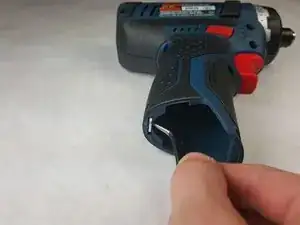

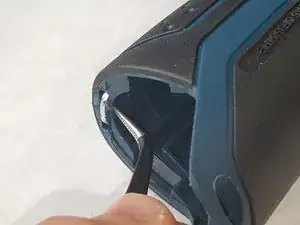

After removing the battery pack, locate the clip that connects the two halves of the outer casing shown in the picture. Remove the clip using angled tweezers or a similar tool. Save the clip for reassembly.
-
-
-

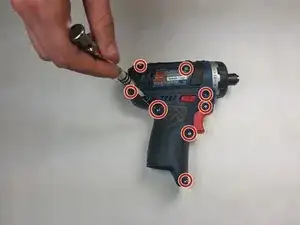

Locate the eight 5.5 mm screws as shown in the picture.
-
Remove each screw using a small Phillips head screw driver. Save all the screws for reassembly.
-
-
-

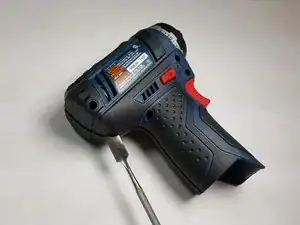

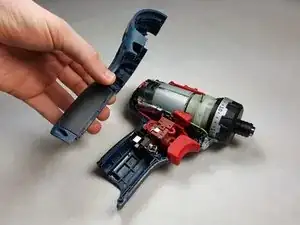

Starting at the rear of the drill, use a wedge to separate the two halves of the outer case at the parting line.
-
-
-

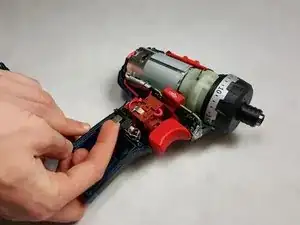

Lift up the metal tab as shown in the first picture to free the trigger assembly.
-

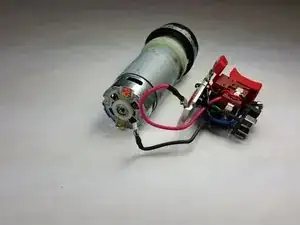

Gently dislodge the motor and trigger assembly from the drill case. Remove the components as one piece, shown in the second picture.
-
-
-

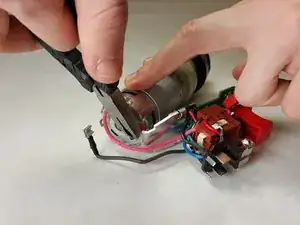

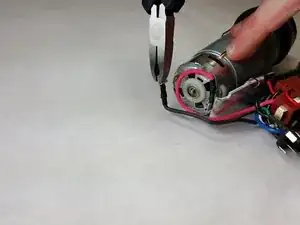

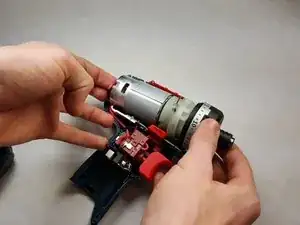

Firmly secure the motor assembly in place. Using a set of pliers, carefully pull the black wire connector away from the motor. Repeat this action with the red wire connector.
-
-
-

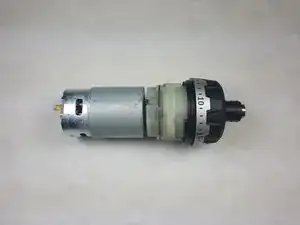

Once the wires have been disconnected, separate the trigger mechanism from the motor assembly.
-

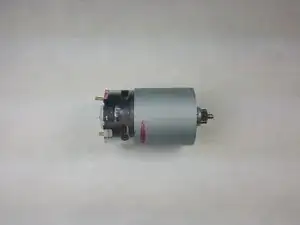

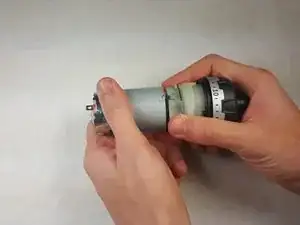

Place your hands on each end of mechanism and carefully pull apart the assembly in order to separate the gearbox from the motor.
-
To reassemble your device, follow these instructions in reverse order.
