This is a step-by-step guide to replacing the indicator light on a Bose Solo 5 Sound Bar (Model # 732522-1110). The Indicator light on this speaker will show when the system is on, and shows the status of the system when in operation. The repair process is classified as a moderate difficulty, and does not require any specialized skills.
Werkzeuge
-
-

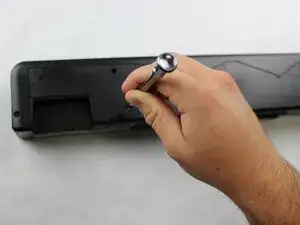

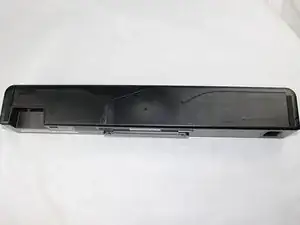

Lay the Bose Solo 5 on its side, with the speakers facing away from you. This orientation will result in the bottom of the speaker facing upwards.
-
-
-

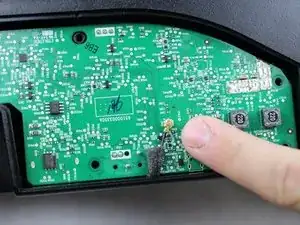

Gently remove the gold plates and the snap connector from the circuit board by pulling it apart.
-
-
-

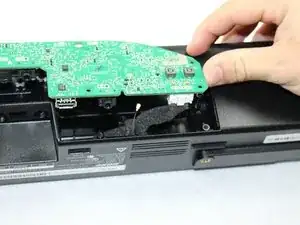

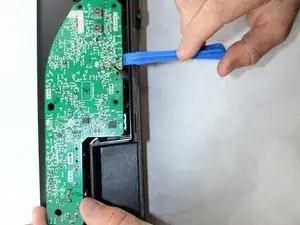

Using the plastic opening tool, slightly lift the circuit board up and remove it from the housing.
-
-
-
Disconnect the cords running to the white connector by pulling upon the tab until it is disconnected completely.
-
-
-

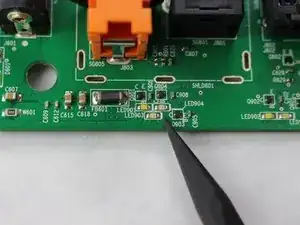

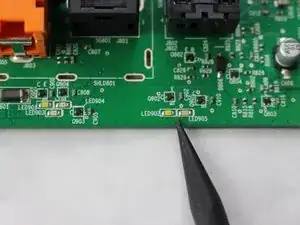

Locate the two clear LED receptors and note that one has two prongs and the other has three prongs.
-
-
-

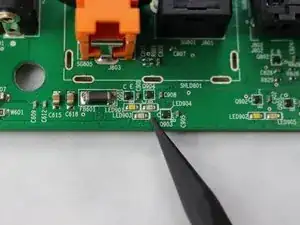

If there is any debris located in these locations, use the spudger tool to thoroughly clean the area.
-
To reassemble the sound bar, follow the steps listed above in reverse order.
