Einleitung
Für diese Reparatur muss das Gerät weitgehend zerlegt werden. Das äußere Gehäuse und die Platine müssen entfernt und es muss ein wenig gelötet werden.
-
-

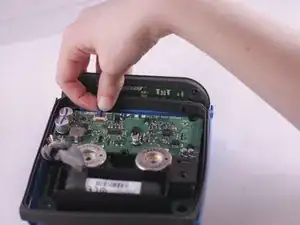

Klappe den Sicherungsbügel am ZIF-Anschluss des Tastaturkabels hoch.
-
Ziehe das Kabel gerade aus dem Anschluss heraus.
-

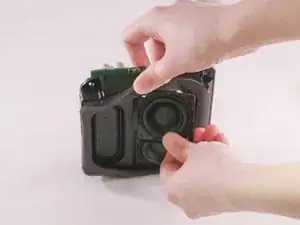

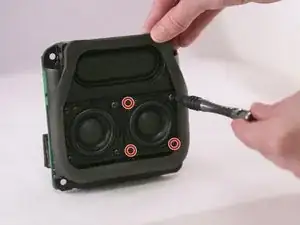

Entferne die innere Baugruppe.
-
-
-

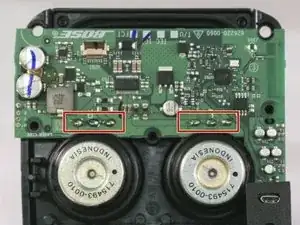

Entlöte drei Lötstellen, mit denen der Lautsprecher an der Hauptplatine angeschlossen ist.
-

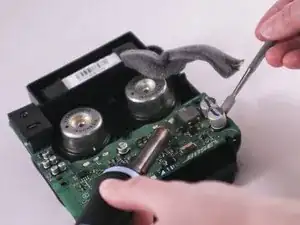

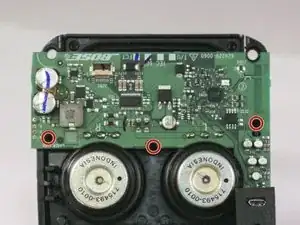

Hebe die Hauptplatine behutsam mit dem Spudger an, damit die Verbindungen sicher entlötet werden.
-
Um dein Gerät wieder zusammenbauen, folge den Schritten in umgekehrter Reihenfolge.
6 Kommentare
Thanks for this tear down. Never thought that it looks like this on the inside. My battery is kind off aging, bought the unit 7 months ago. Local Bose dealer said battery cost half of this speaker. I hope there is a cheaper alternative.
You can unsolder the battery and replace with a standard unprotected 18650 cell it literally costs 7$ for a high quality sony or panasonic or samsung cell. The protection and charging circuit is included in the speaker motherboard just make sure you resolder with the proper polarity.
swiftink -
Como ago para traducir cada
Speaker looks like a 18650 lithium ion- from the pictures here.
hi i just finished prying apart those round buttons. it is very important to know if you dont want to mangle the button trying to pry it loose. if your looking down at the four buttons the inside part of all the four round circles is where you put a thin small tool, that is where the opening is to eventually pull up the whole thing without having to mangle the circle. so if your looking at the four circles the opening will be in the part of circle where all rounds face each other inward i hope this helps
art -
Note that the torx plus is a 5 star tool, and was the size 15 for me. Make sure you don't purchase the common 6 sided star tool.
Mark -
Knowing you have to replace battery, why are the %#*@ things glued on? Just sayin’
Toni -
Knowing battery needs to be replaced, why are these things glued??
Toni -
Not a tool to remove! Why’re they glued in the first place?
Toni -
I’ve ruined perfectly good tools!
Toni -
This has become stupid! Posting comments that never appear!
Toni -
Should be effing impossible!
Toni -
Sorry, just now found them! Honestly, this can become impossible!
Toni -
I found it not possible to remove the screw caps cleanly, without messing up the case around the caps. Here’s a new method. This method damages the screw caps, but it keeps the case from getting mangled.
1. Use a spring-loaded center punch to emboss a small dimple in the center of each screw cap.
2. Drill a hole (using a 1/8th-inch bit) in each cap, using the aforementioned dimple to center the bit.
3. Use a small screwdriver shaft to pry out each screw cap, working each cap gently up and out, in a circular motion.
NOTE: The prying action (not to mention the hole you just drilled) will damage the screw caps enough that you probably will end up just tossing them. They serve no functional purpose other than to make replacing the battery more challenging. (Thanks Bose!)
If you do elect to re-install the screw caps, note that they’re keyed uniquely (in pairs). They are not interchangeable.
I tossed mine.
Riccardo -
I used a similar method, however, I found a small screw to fit the hole, screwed it in place, I could then grab the upper part of the screw around the head area with a pair of pliers and pull the plugs out with no problem. Take note of the 5 sided torx bit. Not the standard 6 sided ones.
timjamie -
I also just filled a small hole in them and used a scre to yank them out. Tossed caps in garbage. I’ve now purchased multiple torx tools and still don’t have the right one. Trying again….
Craig Stout -
There is no such animal as a 1.8 cm Torx plus bit. A great site made poor with misleading information. Boo hoo
phpeh -
I’m also struggling to get the right tool, but now see it’s a 5 sided Torx size 15. Not the standard 6 sided Torx that I now have a few of.
Craig Stout -
It says: “1.8 cm LONG …” That’s actually not talking about the torx head size but rather the screw shaft. Just saying…
Jeremy Cotter -
These are indeed 5-sided Torx Security, size 15; however the shaft of my multibit seems too fat to fit in the plastic canal.
Which multibit (precision?) screwdriver are you guys using? The canal seems to be just 8mm wide.
Yklamin -
This set worked just fine for me : )
Yakamoz 2 Set of 7Pcs 1/4" Hex Shank Magnetic 5 Point Security Star Torx Screwdriver Bits Set | T10-T40, 2-Inch Length
https://www.amazon.com/gp/product/B07T9S...
Matt Monsour -
Yep, removal of the plugs is messy. Obviously, BOSE intended these speakers to be a throwaway! There is a “sweet spot” on the plugs where I carefully hammered a very thin screwdriver blade along the edge of the plug until the screwdriver plunged further down along the side of the plug. At that point, I could pry the plug out. There was a little damage to the case at the edge of the plug hole, and the plugs were damaged enough that I would throw them away. I might consider putting some silicone gel in the holes where the plugs used to be. Next time, pulling out the silicone has got to be easier than pulling these !@#$%^&* plugs!
Bryant Hozempa -
! WICHTIG! Deutscher Kommentar unten.
So Yeah the plugs are a nightmare, I dont know if the warning is the same but in german it says: Use a plastic tool if possible. Dont. Simply because its not possible, its a tight fit of a plug, glued at the bottom.
Same as some others here i used a screwdriver that is as thin as possible and as thick as needed for it not to bend or break.
Obviously this will leave marks on the chassis. But i dont think i they designed it as a throw away product. It is waterproof afterall and i had mine repaired when there was still guarantee. I suppose they have some industrial vacuum tool and use new plugs everytime.
DIE BESCHREIBUNG IST AUF MEIN GERÄT NICHT ZUTREFFEND!
Ich weiß nicht ob es Unterschiede in den Geräten gibt, aber bei diesem kann ich sagen: aufgrund des Klebers kann man Plastikwerkzeuge vergessen und es wird Schäden geben. Da mein Gerät nicht lädt und lange keine Garantie mehr hat kann mir das persönlich egal sein. Nur finde ich die Beschreibung irreführend.
Niero -
To get these caps out I had to drill through them, and than pull them out.
Before that I trird to pull these caps with little flat screw drivers but I ended broking 2 screw drivers
Tamir Chartarifsky -
