Bose SoundTouch 10 Charging Port Replacement

Geschrieben von: James Asbury
  • Kommentare: 5
Bose SoundTouch 10 Charging Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

Keine Schätzung

Einleitung

If your speaker is not receiving power or is charging slowly, make sure that it is not the power cord that is the cause of the problem. After that if the problem persists, the charging port may need to be replaced.

The motherboard in this guide contains capacitors which can hold a charge even when the speaker is powered off. Do not touch the as it may result in a shock.

  1. BuUHGaTUPsIMoJgK

    • Turn the speaker over so that the rubber strips along the bottom are facing you.

    • Use the iFixit Opening Tool to peel back the rubber strip on the bottom-front edge.

  2. koLIKQ4THKUFfcUX

    • Use a #2 Phillips screwdriver to remove each of the three 20mm screws on the bottom front edge of the speaker.

  3. EmCSBQhWvUHprxDb
    EmCSBQhWvUHprxDb
    hkSBT1begglkBvDY

    • Slide the front panel with the mesh covering downwards to disconnect it from the SoundTouch 10 body.

    • Lift the panel away to reveal the speaker head.

    It’s on tight, need to push downwards fairly hard.

    John Olsen -

  4. YsZLkLwkKmE5mC2r

    • Use a #2 Phillips screwdriver to remove each of the six 20mm screws located underneath the front panel.

  5. LyJYTTYKQ5cdNVKq

    • Flip the speaker onto its back.

    • Loosen the adhesive by sliding a Metal Spudger under the edge where the back panel meets the speaker's body.

  6. jgCsCBRJTliYNhld
    jgCsCBRJTliYNhld
    SqHvPC25dWKSCJe4

    • Use force with an iFixit Plastic Opening Tool to pry the back panel up from the speaker frame.

    • If the panel does not come free easily, a heat gun may be needed to weaken the adhesive.

    • Once the panel has been disconnected, it should fall open revealing the motherboard.

  7. fpSHuTeG2wBRTZd4
    fpSHuTeG2wBRTZd4
    Umw1BbkIPHlLyBBe

    • Use ESD Safe Tweezers (Blunt Nose) to pull out the wire ribbon at the end of the motherboard.

    What is the serial number or spare part number of that ribbon.

    STIVEN RAMIREZ -

  8. xkFjULwVYNeKTRWk
    xkFjULwVYNeKTRWk
    RJR2cELjZPRcilDm

    • The motherboard contains capacitors (shown as cylinders in the upper right of the picture) which can hold a charge even when the speaker is powered off. Do not touch them as doing so may result in a shock.

    • Pull up on the base of the speaker wire plug to disconnect it from the motherboard.

    Only the upper part takes off (the one that is whiter). The other part coresponds to the base, and it is unremovable

    Andrés Tumini -

    To remove the plug, squeeze the very top of the plug to unlatch the plug, then pull on the plug to remove it.

    John Olsen -

  9. YhGXIQOEYFjyusLL

    • Use a #0 Phillips screwdriver to remove each of the two 11mm screws attached to the bass port.

  10. WNv1H22wHntWpSLF

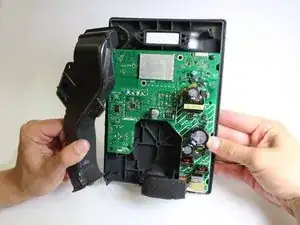

    • Lift the bass port away from the motherboard.

  11. kKjNYSuQQ2RtmWVB
    kKjNYSuQQ2RtmWVB
    OgfW6GsRIjodQGIo

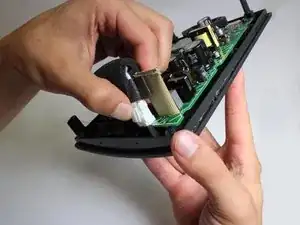

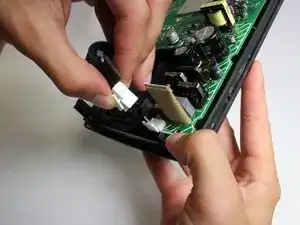

    • Pinch the tab on the bottom of the clip connecting the charging port cables to the motherboard.

    • Lift upwards to disconnect the clip.

  12. HRolHCIeQJpnhcRG

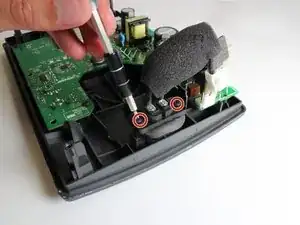

    • Use a #2 Phillips screwdriver to remove the two 15mm screws from either side of the charging port.

  13. BGiPl1MIQbcOj3Gx

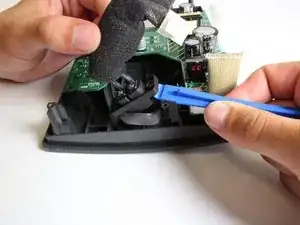

    • With an iFixit Plastic Opening Tool, pry the speaker port upwards and away from the socket.

    From where can I get new parts? My soundtouch don't start. I think that the power supply has a failure.

    Rainer Schilll -

Abschluss

To reassemble your device, follow these instructions in reverse order.
