Bose SoundTouch 10 Speaker/Driver Replacement

Geschrieben von: James Asbury
  • Kommentare: 8
Bose SoundTouch 10 Speaker/Driver Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

7 - 10 Minuten

Einleitung

If the audio from your SoundTouch 10 is muffled, distorted, or completely silent, you may need to replace the speaker entirely. Be careful when handling the motherboard as it contains capacitors which may hold a charge even while the speaker is unplugged.

  1. BuUHGaTUPsIMoJgK

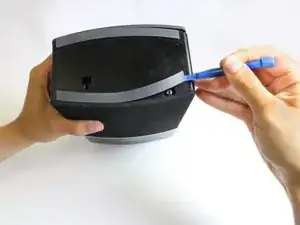

    • Turn the speaker over so that the rubber strips along the bottom are facing you.

    • Use the iFixit Opening Tool to peel back the rubber strip on the bottom-front edge.

  2. koLIKQ4THKUFfcUX

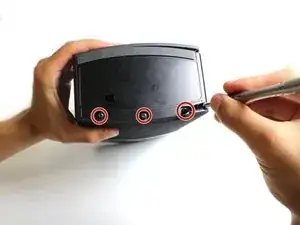

    • Use a #2 Phillips screwdriver to remove each of the three 20mm screws on the bottom front edge of the speaker.

  3. EmCSBQhWvUHprxDb
    EmCSBQhWvUHprxDb
    hkSBT1begglkBvDY

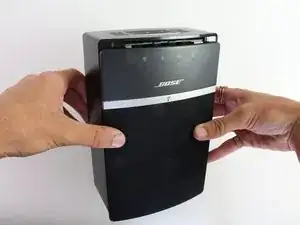

    • Slide the front panel with the mesh covering downwards to disconnect it from the SoundTouch 10 body.

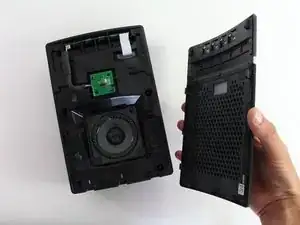

    • Lift the panel away to reveal the speaker head.

    It’s on tight, need to push downwards fairly hard.

    John Olsen -

  4. YsZLkLwkKmE5mC2r

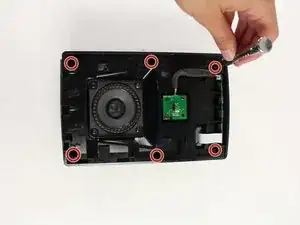

    • Use a #2 Phillips screwdriver to remove each of the six 20mm screws located underneath the front panel.

  5. LyJYTTYKQ5cdNVKq

    • Flip the speaker onto its back.

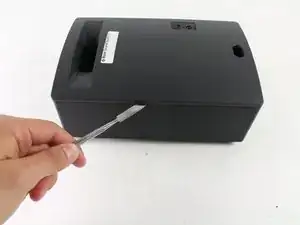

    • Loosen the adhesive by sliding a Metal Spudger under the edge where the back panel meets the speaker's body.

  6. jgCsCBRJTliYNhld
    jgCsCBRJTliYNhld
    SqHvPC25dWKSCJe4

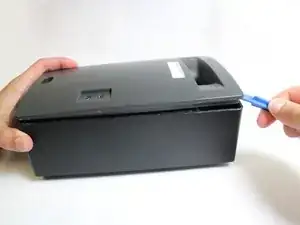

    • Use force with an iFixit Plastic Opening Tool to pry the back panel up from the speaker frame.

    • If the panel does not come free easily, a heat gun may be needed to weaken the adhesive.

    • Once the panel has been disconnected, it should fall open revealing the motherboard.

  7. fpSHuTeG2wBRTZd4
    fpSHuTeG2wBRTZd4
    Umw1BbkIPHlLyBBe

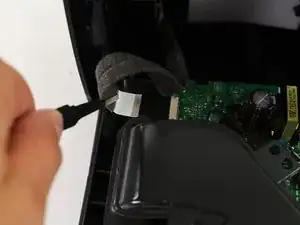

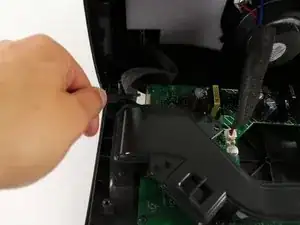

    • Use ESD Safe Tweezers (Blunt Nose) to pull out the wire ribbon at the end of the motherboard.

    What is the serial number or spare part number of that ribbon.

    STIVEN RAMIREZ -

  8. xkFjULwVYNeKTRWk
    xkFjULwVYNeKTRWk
    RJR2cELjZPRcilDm

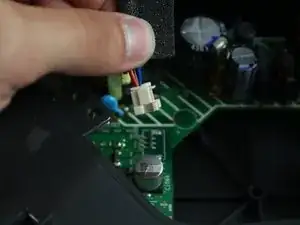

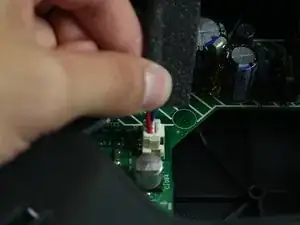

    • The motherboard contains capacitors (shown as cylinders in the upper right of the picture) which can hold a charge even when the speaker is powered off. Do not touch them as doing so may result in a shock.

    • Pull up on the base of the speaker wire plug to disconnect it from the motherboard.

    Only the upper part takes off (the one that is whiter). The other part coresponds to the base, and it is unremovable

    Andrés Tumini -

    To remove the plug, squeeze the very top of the plug to unlatch the plug, then pull on the plug to remove it.

    John Olsen -

  9. TPHKbLGeRAgfKZFG

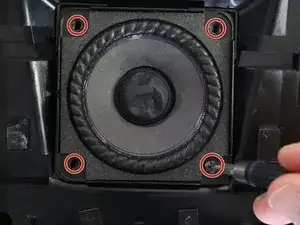

    • Use a #2 Phillips screwdriver to remove each of the four 15mm screws holding the speaker in place.

  10. QZIPFQFkjAEPOVYd

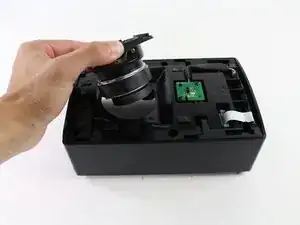

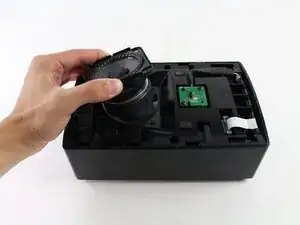

    • You can now lift speaker/driver completely away from it's housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
