Bose Soundlink II Battery Replacement

Geschrieben von: Kevin Bailey
  • Kommentare: 16
Bose Soundlink II Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

2 - 4 Minuten

Einleitung

  1. fRNxXqiJ51XrjWWa

    • Using a 2.5 mm hex wrench, remove the two 13 mm screws from the bottom of the speaker.

  2. hFcl62Nfb2nIHuWa

    • Push up on the back of the cover until it slides up slightly.

    • Pull the cover up and away from the speaker backing.

  3. 5YnXmV1E4Tx3snAY

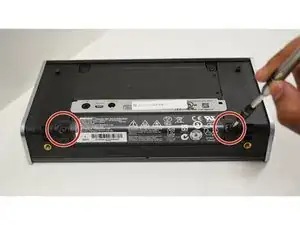

    • Using the screwdriver with the T-10 star tip, remove the 6.75 mm. screws marked in red.

    Where can I buy the battery

    lkheng -

  4. j3Ff6LrlbTshbAbr
    j3Ff6LrlbTshbAbr
    TlYmOMbRuPMoE32h

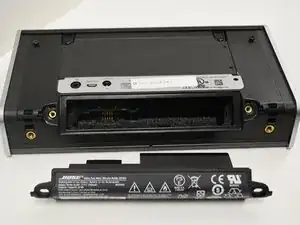

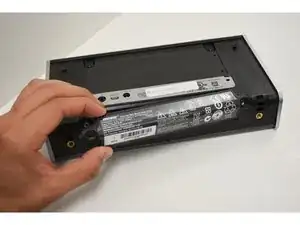

    • Carefully remove the battery by pulling it out of the speaker.

    Where can buy that battery

    lkheng -

    Excellent and simple guide to follow. Thank you! Amazon provides access to several of these batteries. Just verify the model number in your device.

    charlesakers2008 -

    I was able to replace the battery even though I couldn’t get the cover off

    Henry Rose -

    We managed to purchase a replacement battery in NZ for this speaker - but they’re hard to come by! We tried AliExpress (similar to eBay) however that didn’t work very well, because the poor fit around the edge seal was not tight and caused these horrible vibrations. So we ended up getting one from Bose’s themselves, after a few calls to their help desk.

    The battery was around $180NZD but worth it as the SoundLink II is fantastic. Here’s to hopefully at least 5 more years!

    Jesse Roberts -

    Thanks a lot for so nice guide.

    I bought it in Michigan in 2012 and now the red led is flashing probably indicating battery end of life.

    I live in Brazil but I have brother in low living in Miami. Do you know if BOSE sells this batteries for replacement?

    Thanks in advance for your help!

    Best Regards!

    Jeff

    Jefferson Beuren -

Abschluss

To reassemble your device, follow these instructions in reverse order.
