Bose Soundlink Revolve AUX/USB-Anschluss austauschen

Geschrieben von: Brian Butner
  • Kommentare: 27
Bose Soundlink Revolve AUX/USB-Anschluss austauschen

Schwierigkeitsgrad

Mittel

Schritte

5

Zeitaufwand

20 - 25 Minuten

Einleitung

Verwende diese Anleitung, um den AUX/USB-Anschluss in deinem Gerät auszutauschen.

  1. jyBIWRaFUuMEDpsq
    jyBIWRaFUuMEDpsq
    NBDu6HDNZmsvmPEb

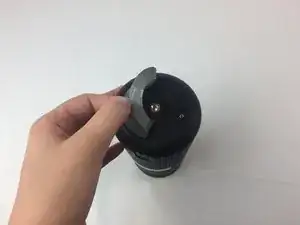

    • Drehe den Lautsprecher um, um an die Unterseite zu gelangen.

    • Löse das graue Gummi mit einem Spudger und ziehe ihn langsam mit der Hand ab.

  2. MHD5Snl1BcOvZltq
    MHD5Snl1BcOvZltq
    PWYWcyiVvJBconsD
    h21rF5phTdHuN465

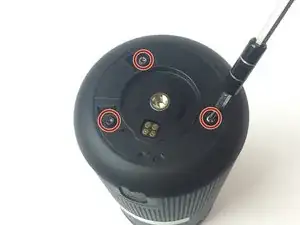

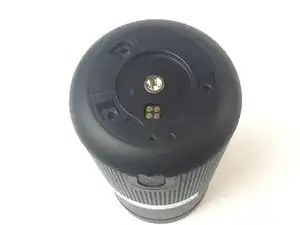

    • Entferne die drei Schrauben.

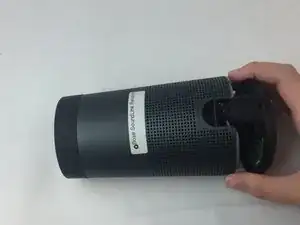

    • Löse das Unterteil vom Rest des Lautsprechers, indem du die beiden Teile auseinanderziehst.

    These are not the screws I have in my bose speaker. These are standard TORX screws ( with 6 sides) bose uses a special 5 sided secure torx screw(with a dot in the middle of the hole). A screwdriver or a screw-bit for these screws is very hard to find. I am still searching for one

    Frank -

  3. quNvoNk1ZZVgc66G
    quNvoNk1ZZVgc66G
    p3MSr4OibNNINYce

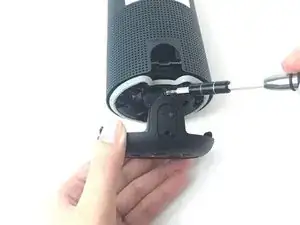

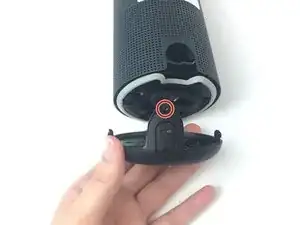

    • Entferne die Schraube über der Ladebuchse.

  4. WincSxJBiuZTVxWU
    WincSxJBiuZTVxWU
    rssxhFY6DIOlUMlD

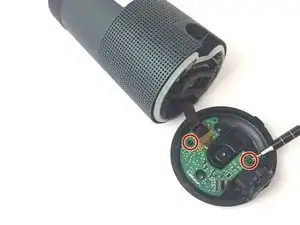

    • Entferne die beiden Schrauben, die die Platine am Unterteil des Gehäuses fixiert.

    • Entferne das Unterteil des Gehäuses.

  5. 1R6wHDBYEGHOcxhT
    1R6wHDBYEGHOcxhT
    OR2pqFdX5KZiGFbR
    jQSEGBeDA3DN34SY

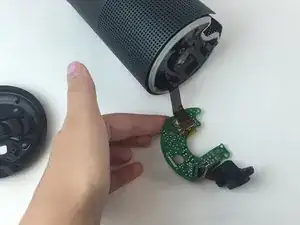

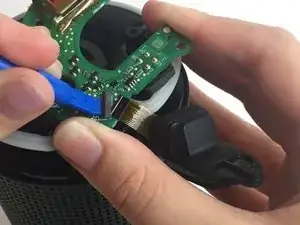

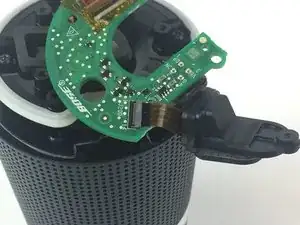

    • Heble mit dem blauen Plastiköffnungswerkzeug die kleine schwarze Klemme hoch, die den AUX/USB-Anschluss mit der unteren Platine verbindet.

    • Entferne den AUX/USB-Anschluss vom Gerät.

    Where do you buy the usb/ aux port .

    kepac -

    I have a charging cradle and it still flashes red light not charging

    kepac -

    Where do I find this part?

    Bohdan Tomanek (emerysteele) -

    So maybe you have to work at Bose to get the part?

    John Halvorsen -

    Hi! Where do I find this part?

    mariajoseespinoza.m -

    Where can I find this part

    Allan Wilson -

    I just wanted to find out if any android port can be connected and work or they are specific. Also when hot wiring the cables, is there a particular pattern or anything goes?

    Obbo Benjamin -

    How does one reattach the latch here exactly?

    andrewpalozzo -

    Bonjour, ces explications sont très claires mais il reste beaucoup à démonter et surtout on ne sait pas trouver la pièce défectueuse, sans parler d'en trouver une de rechange... Merci quand même mais le chemin est encore long pour réparer cet appareil...

    Henri -

Abschluss

Um dein Gerät wieder zusammenzubauen, befolge diese Anweisungen in umgekehrter Reihenfolge.
