Einleitung
The Bose Soundlink is a very useful speaker. It provides great sound at an affordable price. If the speaker does not work, it is a better idea to fix the device instead of buying a new one. Fixing the Bose Soundlink can save the owner money and can also reduce the toxic fumes generated from broken electronics disposed and burned in landfills. This guide provides step by step information on properly replacing the revolve speaker. The tools needed to complete this installation properly are shown. Using these tools and following the instructions will help the owner get their Bose Soundlink speaker working again.
-
-
Use a plastic opening tool or metal spudger to remove the rubber mount from the bottom of the speaker.
-
-
-
Unhook the ribbon conector that connects the bottom cover to the body, then remove the bottom part of the speaker.
-
-
-
Use a TR9 screwdriver to remove the screws from the top of the speaker, and then remove the top part of the speaker along with the motherboard.
-
-
-

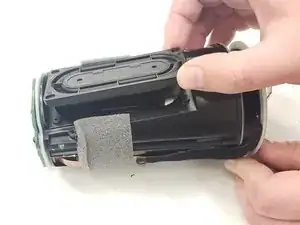

Use a T10 screwdriver to remove the four 6 mm screws around the 2 speakers, and remove the speaker units from the body.
-
-
-
Remove the three 25.3mm screws from the bottom part of the speaker body with a T10 Torx screwdriver.
-
-
-
Remove the four 6 mm screws from the top part of the speaker body using a T10 screwdriver.
-
To reassemble your device, follow these instructions in reverse order.
7 Kommentare
Hi,
I buy used revolve and change top board, battery, cable… everything working good but when you play music I hear some “vibrations” from speaker. Main speaker is ok when playing out of hausing. When I remove speaker from side (step11 of this page) vibration is gone out. If I put speaker on place vibrations is come. Do you have any idea what can causing this problem please?
M.
Martin -
Hi Martin,
Same issue on my side. The vibrations (especially for the basses) come from an air gap. You have to be very careful when you reassemble the device, especially for the speaker. I had have to replace the foamed tape.
Hope this will help
Olivier
Olivier -
Saya punya speaker serupa
Kendalanya dicas hanya menyala lampu indikator kuning terus dan speaker mati total
Bagaimana cara mengatasinya
My experience is that the side speakers should seal properly otherwise the sound is distorted. Rupture on the membrane allowed an air stream coming out which is directly related to the distorted sound especially at the bass. I used Billy Ellish Bad Guy as a reference. I identified the side speaker to my local Bose service (BaSys, Hungary, thx) via the image in this description. They brought me a pair of speakers for~15eur in two weeks. On the package stands 357793-0010 which is probably the part number. I did the replacement according to the description with success.
katonage -
