Bose Soundlink Revolve Subwoofer Replacement

Geschrieben von: Ruoyu Han
  • Kommentare: 8
Bose Soundlink Revolve Subwoofer Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

35 Minuten

Einleitung

In this guide, details about disassembling the BOSE SOUNDLINK Revolve speaker are included for individuals who need instructions on how to troubleshoot and fix the speaker.

The Bose SOUNDLINK Revolve is a compact Bluetooth speaker that provides premium quality sound while still light and easy enough to carry. This specific example is not functioning as the speaker can’t be turned on. Thus, our team performed an educational disassemble of the device in order to troubleshoot the problem.

  1. QeIfGAhmZCaIpqVh

    • Use a plastic opening tool or metal spudger to remove the rubber mount from the bottom of the speaker.

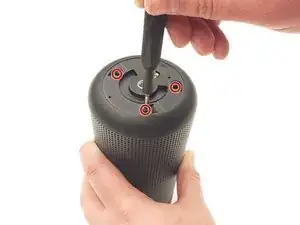

  2. 4MrGVFU6naWvXPmP

    • Use a T10 screwdriver to remove the three 10 mm screws from the bottom of the speaker.

    This is not a T10 screwdriver at all... T10 have 6 branch star...bose screw have only 5...

    Martin -

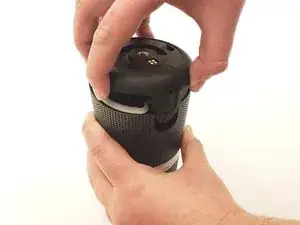

  3. PoIOtGSCBSJPy1ZS

    • Unhook the ribbon conector that connects the bottom cover to the body, then remove the bottom part of the speaker.

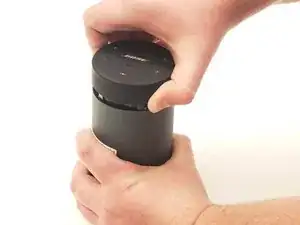

  4. lcbjZnlnRtYpHvHN

    • Use a TR9 screwdriver to remove the screws from the top of the speaker, and then remove the top part of the speaker along with the motherboard.

    What screw are we removing here?

    andrewpalozzo -

  5. VlFW1ixejREBuukS

    • Slide the body of the speaker from the metal cover.

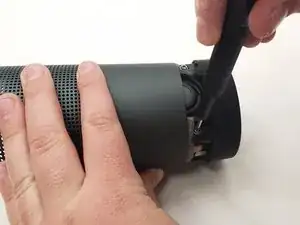

  6. SfhkhU4IAjrkSodD

    • Use a T10 screwdriver to remove the four 6 mm screws around the 2 speakers, and remove the speaker units from the body.

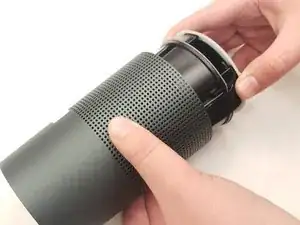

  7. ySKHePFRMPCQinX6

    • Pull off the metal case from the speaker body.

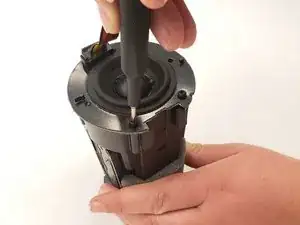

  8. 1P4gRLjJyMZIpYGL

    • Remove the three 25.3mm screws from the bottom part of the speaker body with a T10 Torx screwdriver.

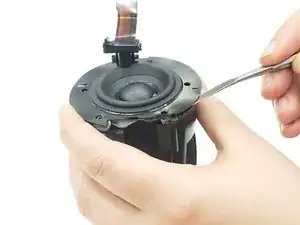

  9. 2sFE2GTbuXKbaOLF

    • Use a spudger to pry apart the glued section between the speaker panel and the device.

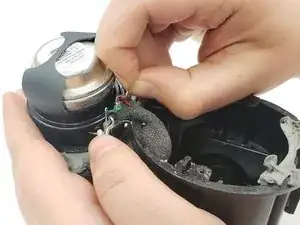

  10. xpNJVv2eQjoSViKV

    • Open the speaker panel, then unwind the three wires from the speaker.

    From where I can get mother board and fct cable

    Ghanshayam verma -

Abschluss

To reassemble your device, follow these instructions in reverse order.
