Bose Soundlink Revolve Top Circuit Board Replacement

Geschrieben von: Brian Butner
  • Kommentare: 13
Bose Soundlink Revolve Top Circuit Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

15 - 20 Minuten

Einleitung

Use this guide to replace the top motherboard on your device.

  1. jyBIWRaFUuMEDpsq
    jyBIWRaFUuMEDpsq
    NBDu6HDNZmsvmPEb

    • Flip speaker over so that the bottom is facing up.

    • Using the blue spudger, lift the gray foam up and slowly peel it off with your hand.

  2. MHD5Snl1BcOvZltq
    MHD5Snl1BcOvZltq
    PWYWcyiVvJBconsD
    h21rF5phTdHuN465

    • Using the screwdriver, unscrew three screws.

    • Detach the bottom cover from the rest of the speaker by pulling the two in opposite directions.

    These are not the screws I have in my bose speaker. These are standard TORX screws ( with 6 sides) bose uses a special 5 sided secure torx screw(with a dot in the middle of the hole). A screwdriver or a screw-bit for these screws is very hard to find. I am still searching for one

    Frank -

  3. quNvoNk1ZZVgc66G
    quNvoNk1ZZVgc66G
    p3MSr4OibNNINYce

    • Remove the screw that is above the charging port.

  4. WincSxJBiuZTVxWU
    WincSxJBiuZTVxWU
    rssxhFY6DIOlUMlD

    • Remove the two screws connecting the motherboard to the bottom cover of the speaker.

    • Remove the bottom cover.

  5. WqFjmkY4nIEVPcZy

    • Using your hands, grip and separate the soft plastic and the metal casing away from each other with some small force.

    My speaker seems to have a loose connection- I’m not sure if something just needs to be soldered— everything works- but the sound is not coming out- but if I put some pressure on it- I can get the sound to play. Any suggestions? Sad cause it’s bike season now!! Love this thing! Great job on the fixes guys!

    astrogirl rocks -

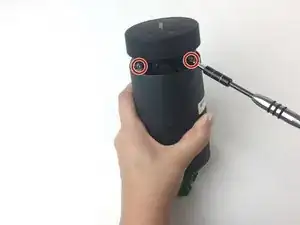

  6. nZvJj1J6YwuDkg4S

    • Remove the (4) four screws shown around the top of the inside.

    • (2) two of the screws are shown here, the other side will look the same.

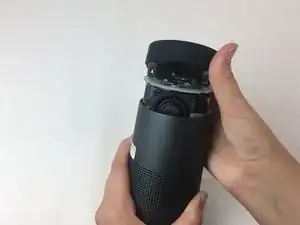

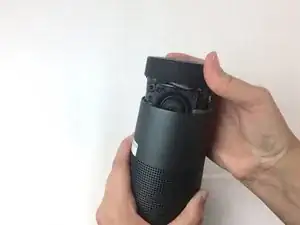

  7. SID3iae3FMWxByWn
    SID3iae3FMWxByWn
    46fiyr6yUADcWMjm

    • Pry up and remove the soft plastic casing from the rest of the device.

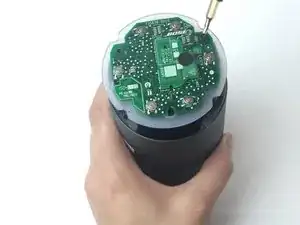

  8. ToqTAxGHwJa3hH4w
    ToqTAxGHwJa3hH4w
    wswFkfsZSdrULrAu

    • Remove the 3 screws holding down the top circuit board.

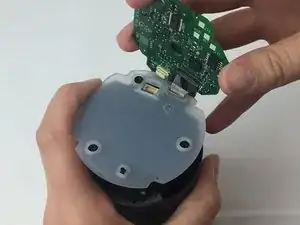

  9. ai3pFkKGLJBomrkF

    • Lift up and look on the underside of the circuit board.

    • Using the plastic opening tool, pry open the wide clamp keeping a ribbon to the top circuit board. The top circuit board can now freely be removed from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
