Bose Wave Radio AWR1-1W Base Replacement

Geschrieben von: Cassie Harriman
  • Kommentare: 0
Bose Wave Radio AWR1-1W Base Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

Removing the base of the device is necessary for accessing many of the other device parts. It can also be useful for checking that non of the circuitry is broken on the inside of the device.

  1. kpBPLKDtTEqOU6PA
    kpBPLKDtTEqOU6PA
    HvslFiAKBMeO2QFX

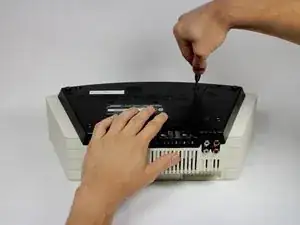

    • Remove the four 19mm Phillips #2 screws from the base of the device.

  2. FGllckVfIaEcbiZ3
    FGllckVfIaEcbiZ3
    AWlqRFTGdPko6WhB
    KXEODArIPUTrJksW

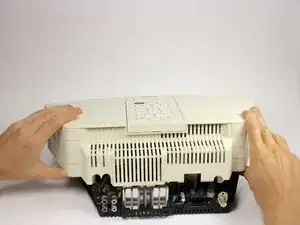

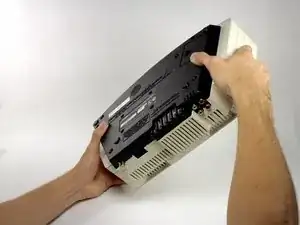

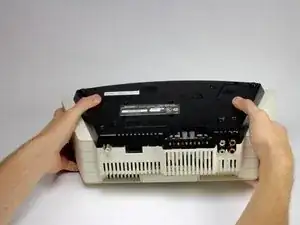

    • Turn the device over, holding the base on with your thumbs.

    • Hold the device tightly to prevent the base from falling off.

  3. e2S3IvDnnll4GuWl
    e2S3IvDnnll4GuWl
    2DGHqvhhb1VbGVUv
    oVFwtCsgouTPDNH1

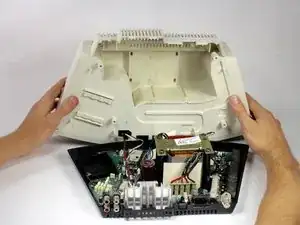

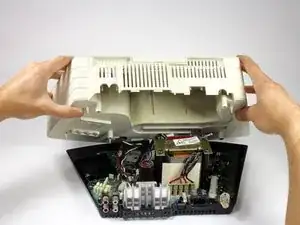

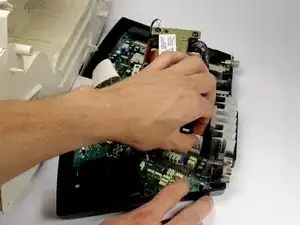

    • Gently lift the top off of the device.

    • Lift in the direction shown to avoid damaging the wires connecting the top and base of the device.

  4. 3UR1sRYycJsGGdwI
    3UR1sRYycJsGGdwI
    fiJWMoLwcDUj2EQ1
    CcCTImsoRPcCqVxQ

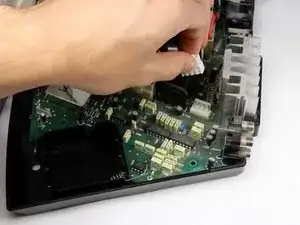

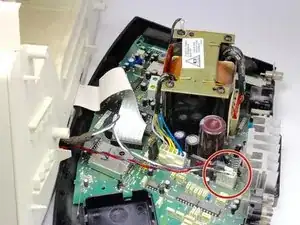

    • Pinch and unplug the white connector from the device.

  5. a1FAfhQhYyVERuJ3
    a1FAfhQhYyVERuJ3
    4EqNwCYsFBO4Cn4v
    6miKLdI4RPllOdbT

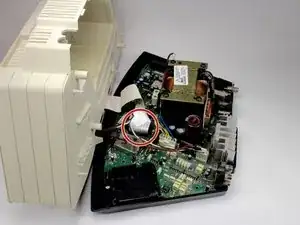

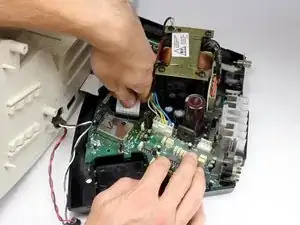

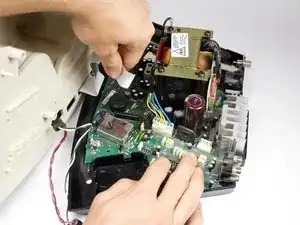

    • Gently pinch and pull on the white ribbon cable to disconnect it from the base.

  6. 3A2iYGQQ4HBFC51Y

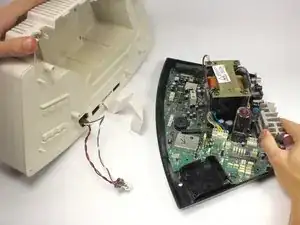

    • The base should now be completely detached from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
