Bowers and Wilkins T7 Access Panel Replacement

Geschrieben von: Shane R. Cowper

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

15 Minuten

Einleitung

Use this guide to learn how to take off or replace your access panel for the Bowers and Wilkins T7 speaker, enabling you to replace every other part.

As with all electronic devices, make sure your device is powered off before you begin.
Gently lift up the access panel; it should easily "pop" open.

My model does not have screws in the front as indicates here. Not sure what to do now

FYI: I bought the Ifixit toolkit and sadly the screw driver isn’t long enough to remove the 4 middle screws.

What sizes are the screws exactly? I took mine apart and someone threw out the screws so now I need replacements.

Be gentle, the rubber seal is fragile and easy to tear, resulting in cosmetic damage to your device.

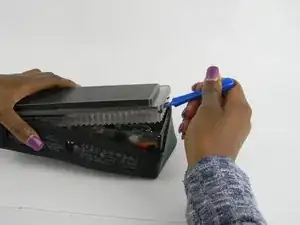

Using the ifixit Opening Tool, carefully pry off the rubber seal around the sides.
The seal is held by adhesive, if this is proving difficult you can use a heat gun to help the process.

The cover is the most difficult part to remove. As you work, pry continuously, moving the tool around the device, working it a little further as you go.

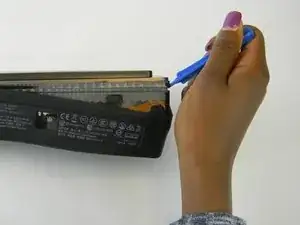

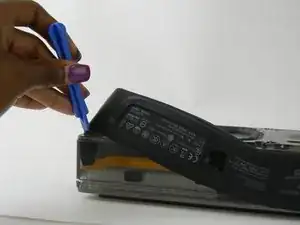

Using the ifixit Opening Tool, pry open at the seam found under the rubber seal.
As the cover starts to come off, you can lift up using your hand.

I tried this with the ifixit tool, but I could not remove the cover

I used a sharp knife. Note carefully where the seam is in the above diagram: on the back about 7 mm from the edge.

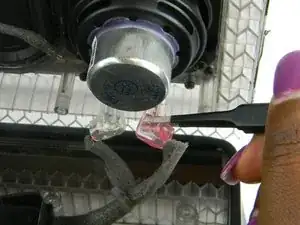

Gently squeeze the internal locking mechanism inside the red and white terminals with either your fingers or a pair of precision tweezers.
While squeezing the internal locking mechanism, pull back the terminal.
Repeat this process for the second speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
