Braun 5514 Akku tauschen

Geschrieben von: Andrew Kluckhuhn
  • Kommentare: 10
Braun 5514 Akku tauschen

Schwierigkeitsgrad

Mittel

Schritte

7

Zeitaufwand

30 - 45 Minuten

Einleitung

Akkus lassen im Lauf der Zeit in ihrer Leistung nach. Diese Anleitung zeigt, wie der Akku im Braun5514 Trimmer ausgetauscht werden kann.

  1. 4AP6X2m5P64wPiXG

    • Ziehe alle Scherköpfe vom Gerät ab.

  2. dqSCUbiRHAfL4KwX
    dqSCUbiRHAfL4KwX
    5aVWuhSvDdqWXLDt
    F1jb4XxTZtTIWCUJ

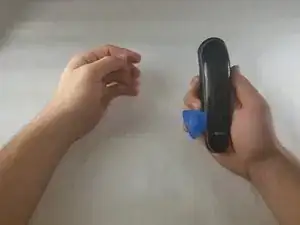

    • Setze ein Plektrum in den Spalt zwischen der Oberschale und der grauen Trennschicht ein.

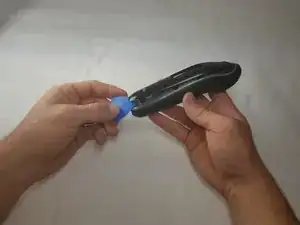

    • Lasse das Plektrum um das Gerät herumlaufen, bis sich die verborgenen Rasten alle lösen.

  3. dquODYtCfkZU5SWU

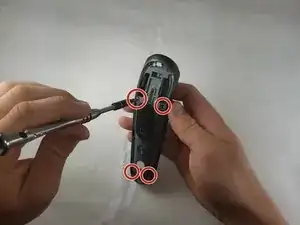

    • Entferne die vier 7,0 mm Torx T6 Schrauben, mit denen der graue Plastikrahmen am schwarzen Gehäuse befestigt ist.

  4. 5HRSSG5TdwOg44wZ
    5HRSSG5TdwOg44wZ
    xejaprZkrSkGADxw

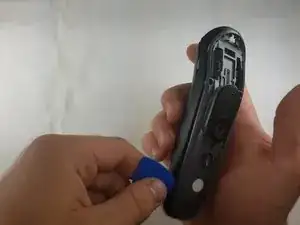

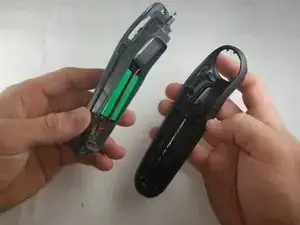

    • Löse den grauen Plastikrahmen mit dem Plektrum vom schwarzen Gehäuse ab.

  5. 2NxmBEBCs5yVrpaX
    2NxmBEBCs5yVrpaX
    fHtkL3wkdWFkkRtx

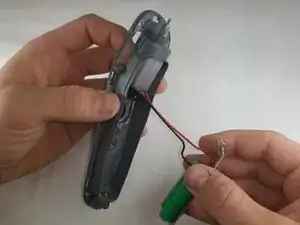

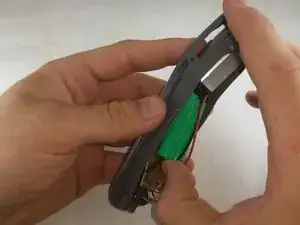

    • Entferne die Leiterplatten-Einheit vom Rahmen.

  6. DIIYuB5JYQATecLc

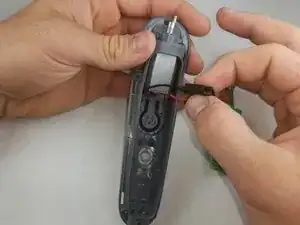

    • Ziehe das kleine schwarze Plastikteil aus dem Rahmen heraus.

  7. 5PPV3eSEnCGbpOF3
    5PPV3eSEnCGbpOF3
    WDoN4JVhGhBPkZUM

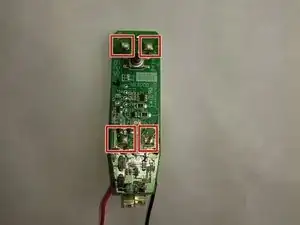

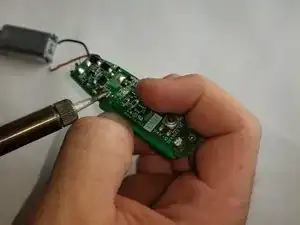

    • Entlöte die vier Akkuanschlüsse von der Leiterplatte.

    • Wiederhole für die andere Akkuseite.
