Einleitung

The device has to be opened and partly disassembled. The battery has to be unsoldered from the logic board and can then be replaced.

  1. A2FTOPXXZQ5JfpaE
    A2FTOPXXZQ5JfpaE
    wIboPbnlOVol2AVw
    XNXVGNvHrGRNnBrS

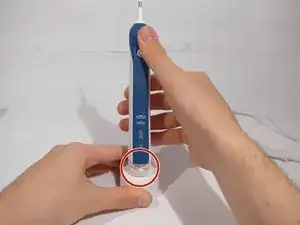

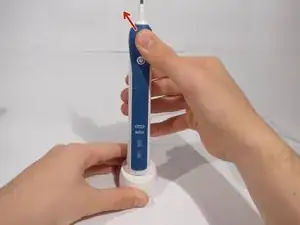

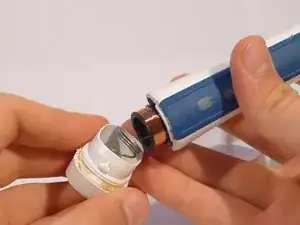

    • Take the device and place it on top of its charger.

    • Now hold down firmly the charger and pull the top of the toothbrush backwards.

    • Just above the lid there is the induction coil, so don't pull too much, or it could get damaged!

    • When the lid at the bottom opens, stop pulling and take it off manually

  2. kByxyklatZkIAiYa
    kByxyklatZkIAiYa
    ZkTBZfYpO1xL5bWG
    vIgai5VPUVJEG4W1

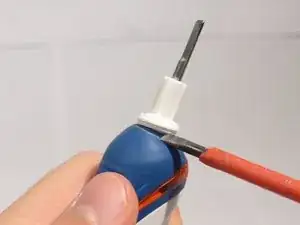

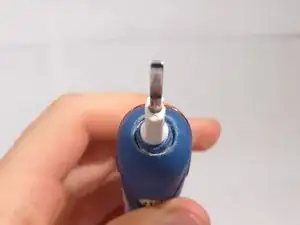

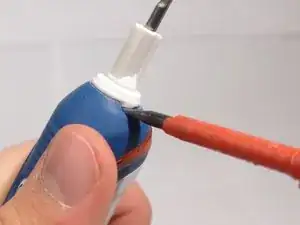

    • Take the screwdriver (or the plastic opening tool) and go under the ring at the top of the gummed area.

    • Now rotate it slightly so the ring comes loose.

    • Be careful not to damage the gum under the ring, as it assures that no water gets inside!

  3. q2ABNF3rE5Peydes
    q2ABNF3rE5Peydes
    ImtMiuWbLX4P5cHR
    Zqyn1KHHQDaSbgOo

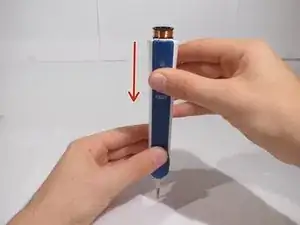

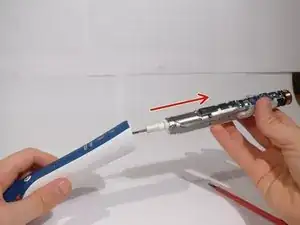

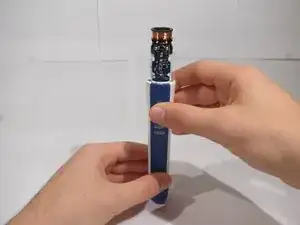

    • Push the point of the device down onto the table and take out the inside.

  4. HXuOIw5pHevNYbPa
    HXuOIw5pHevNYbPa
    NGLXs5qtFUe3UsOI
    4ADmaw5ye1aoBwLH

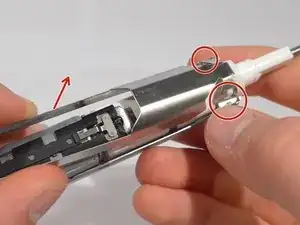

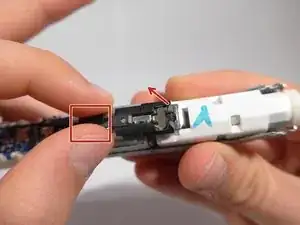

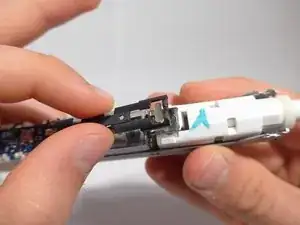

    • First take away the metal sheet of the start/stop button.

    • Then pull the center of the black metal connection of the pressure sensor slightly upwards until the hook holding it to the sensor comes loose.

    • Now it has to be desoldered from the logic board.

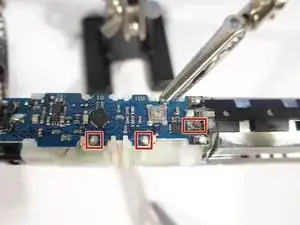

  5. KGFObSmmwpGWJQXD
    KGFObSmmwpGWJQXD
    WdVaRI2GHNMIAAkx
    A5fOmVaqRdbjam6p

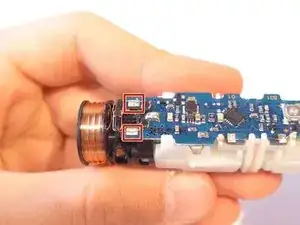

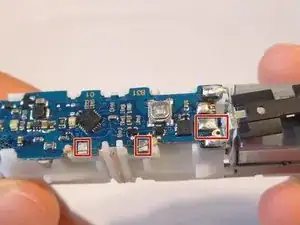

    • Now you have to desolder the sensor connection and both the connections to the red led at the top.

    • The white plastic pins left and right to the led connections can easily melt!

    • Then desolder the connections to the charging coil.

    • Be careful not to touch nearby electronic components, as they could get damaged!

    • And keep the soldering time short and remove the soldering iron as soon as the solder has become liquid, so there is no overheating risk!

  6. TXytNPDXNa2gObAN
    TXytNPDXNa2gObAN
    HANfBWTYoggSFl5M
    UsuJ6pUBH4BPnS3Z

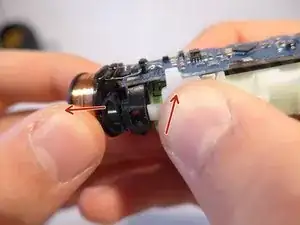

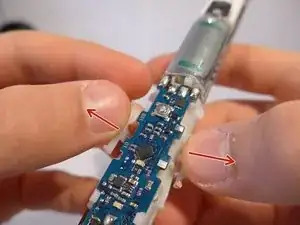

    • First pull off the white plastic support for the red led.

    • Then push the plastic casing of the battery together to pull of the coil.

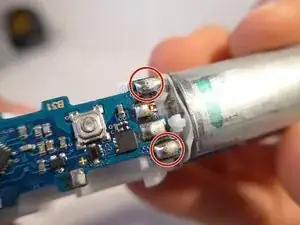

  7. JWrje5xEJwGZBnjU
    • Now the connections to the motor have to be desoldered to take the battery casing of.

Abschluss

To reassemble your device, follow these instructions in reverse order.

TheFixaholic

Mitglied seit: 27/04/15

546 Reputation

2 Kommentare

A good guide but I found removing the bottom quite troublesome. Levering against the charging base felt like it would break the base. I needed to lever it in stages, wedge it and grab and pull it with mole grips. This damaged the plastic a little, but I got it off.

Cone -

Hmm, maybe they changed the construction. When I created the guide the bottoms (of the 2 toothbrushes I repaired) opened quite easily, but that's good to know.
Also I do not think you need to worry about breaking the base: as most chargers that you plug in the mains, it should be completely filled with a hard resin, and thus be almost indestructible.

TheFixaholic -
