Braun Series 7 790cc-7 Charging Base Circuit Board Replacement

Geschrieben von: Ian Hayes
  • Kommentare: 6
Braun Series 7 790cc-7 Charging Base Circuit Board Replacement

Schwierigkeitsgrad

Difficult

Schritte

8

Zeitaufwand

20 Minuten

Einleitung

The circuit board is a vital component to the function of the Braun Series 7 790cc-7 charging base. Many consumers may discard the charging base if it malfunctions rather than replace the circuit board. This can be expensive but by replacing the circuit board the razor can be used for an extended period of time. With the use of this Replacement Guide, one can easily change the circuit board in the charging base when it is required.

  1. 411fkjKVCH6tfC3t

    • Remove the cleaner cartridge from the charging base.

  2. HISLsMBGvNjS3CZo
    HISLsMBGvNjS3CZo
    LLfsQ3XbUfcqV6uj
    4ICVoTPEUOkTIDfN

    • Depress the 4 tabs while lightly pulling the cover from the base.

    • Next, depress the 2 molded tabs while still pulling the cover from the base.

  3. V4DrLDjAHN5LuQvS

    • Press inward on the side charging port while pulling cover from the base to separate.

  4. UPJxQdbdUVdLR6FS
    UPJxQdbdUVdLR6FS
    QSsKHUMWHRvLv1OD

    • Remove side charging port by prying tabs outward and rotating port upward.

  5. JFhlQwaXFyhFWnoA
    JFhlQwaXFyhFWnoA
    VOBHNYTS2DwWskkh

    • Remove charging terminals by inserting a spudger from bottom the and sliding terminals up.

  6. PiOTtQFfTIJfNoFH
    PiOTtQFfTIJfNoFH
    fPBFIC4WNnxLsWV3

    • Remove solder from circuit board and remove charging harness.

  7. pKWFIsEjf3NEhvtf
    pKWFIsEjf3NEhvtf
    CASSXKurfTThtBvU

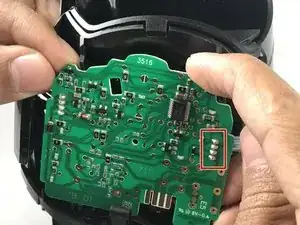

    • Remove solder from wire harness leading to the charging base motor.

  8. PpuFSn25AKyRYITx
    PpuFSn25AKyRYITx
    InrvBMheAxJNyGkY

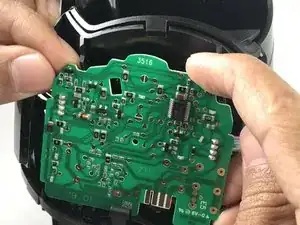

    • Use spudger to release tab at the top left of the circuit board.

    • After the tab has been released the circuit board can be removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Ian Hayes

Mitglied seit: 07/11/17

201 Reputation

6 Kommentare

Step 6-8

If you are only doing an investigation you can release the board enough to inspect and reconnect all connectors without desoldering. This was enough to fix my problems. I found it easier to pull the bottom of the board forward and down, rather than force the tab at the top.

Ian has also not mentioned the 3 things that can fall off, and make reassembly tricky. All these needed to be carefully stored and repositioned on my reassembly.

1. The Base spring release button. Although it goes on the outside I refitted to the inner unit first

2. The carbon/rubber button contacts in the case. These fall off when not in contact with the pcb. They fit on very fine pins on the shell button covers.

3. The angular molding that sits in the front of the well. Needs to be fitted completely to the Base before reassemble

martin bird -

Martin, / Anyone,

Can someone provide pictures showing the reassemble process of the parts that fell out when I separated cover from the base (steps 6-8, as Martin Bird mentioned above)?

I have 2 small rubber pieces (assuming they go on the buttons on base, not exactly sure where they go), & the angular molding - not sure how this piece fits in the front somewhere?

Brent Bono -

I am looking the heating components.

Zebra 99 -

But where do I find a replacement PCB?

Luca Giacca -

I found it hard to put the charging base back together again. Seems like something was broken, a tab or two, and it won´t close all the way down. Now there´s a gap at the bottom that I am too lazy to fix (I have already opened and closed the damned unit five times and I got bored of it.)

ExpatViking -

I had difficulty with separating the base under steps 2 and 3. This is a great tutorial, but I think there’s more to steps 2 and 3 without breaking the unit. For example, I think one needs to depress the left-side cartridge release button while pulling the base from the cover. I didn’t appreciate this and ended up breaking the plastic tab associated with that release button, so then when the unit is reassembled, it won’t stay in the down position. I ended up purchasing a new base from Braun.FactoryOutletStore.com.
