Braun Series 7 790cc-7 Charging Base Wire Harness Replacement

Geschrieben von: Ian Hayes
  • Kommentare: 0
Braun Series 7 790cc-7 Charging Base Wire Harness Replacement

Schwierigkeitsgrad

Difficult

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

The charging base wire harness is essential to the function of the Braun Series 7 790cc-7 charging base. Many consumers may discard the charging base if it cannot be used to charge and clean the razor. This can be expensive but by replacing a faulty charging harness the razor can be used with the charging base again. With the use of this Replacement Guide, one can easily change the charging base harness if required.

  1. 411fkjKVCH6tfC3t

    • Remove the cleaner cartridge from the charging base.

  2. HISLsMBGvNjS3CZo
    HISLsMBGvNjS3CZo
    LLfsQ3XbUfcqV6uj
    4ICVoTPEUOkTIDfN

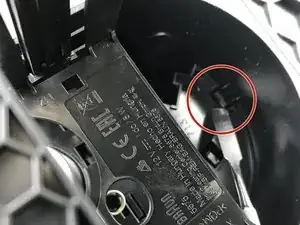

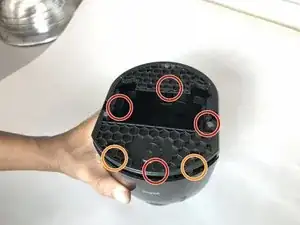

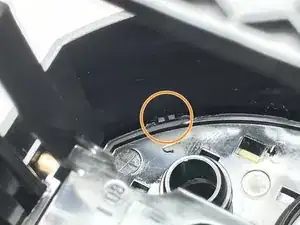

    • Depress the 4 tabs while lightly pulling the cover from the base.

    • Next, depress the 2 molded tabs while still pulling the cover from the base.

  3. V4DrLDjAHN5LuQvS

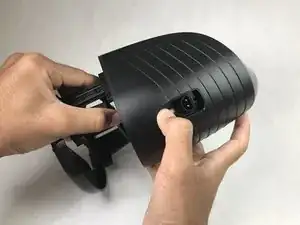

    • Press inward on the side charging port while pulling cover from the base to separate.

  4. UPJxQdbdUVdLR6FS
    UPJxQdbdUVdLR6FS
    QSsKHUMWHRvLv1OD

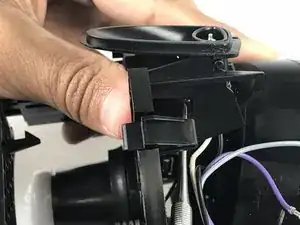

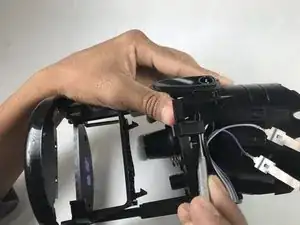

    • Remove side charging port by prying tabs outward and rotating port upward.

  5. JFhlQwaXFyhFWnoA
    JFhlQwaXFyhFWnoA
    VOBHNYTS2DwWskkh

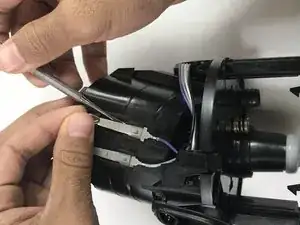

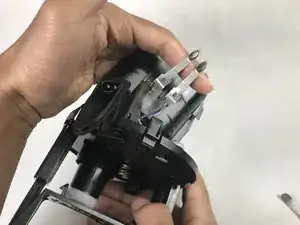

    • Remove charging terminals by inserting a spudger from bottom the and sliding terminals up.

  6. PiOTtQFfTIJfNoFH
    PiOTtQFfTIJfNoFH
    fPBFIC4WNnxLsWV3

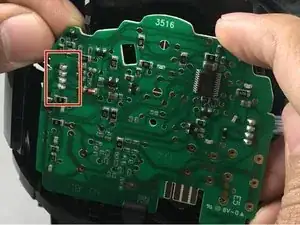

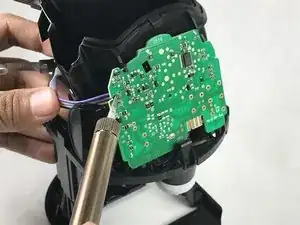

    • Remove solder from circuit board and remove charging harness.

Abschluss

To reassemble your device, follow these instructions in reverse order.
