This guide will help walk you through the process of identifying the speaker wires for your Braven BRV-1s. If your device isn't working, despite having power and being properly connected, you could have damaged or a disconnected speaker wire. This guide will show you how to access these speaker wires and how to replace and solder them back into their proper place.
Werkzeuge
-
-

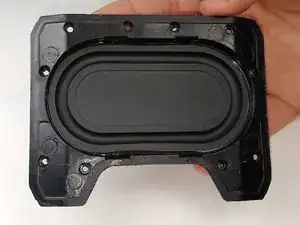

To remove the speaker cone plate, remove 10 phillips screws (Phillips #00 headtype, 9.3mm long)
-
-
-

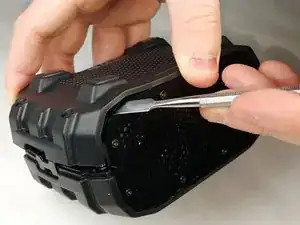

Using a metal spudger, gently pry the side of the defective speaker cone plate.
-

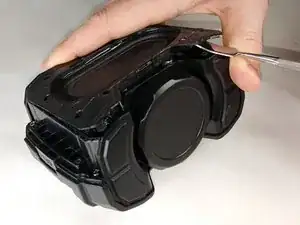

Remember to pry all around the side of the speaker cone plate.
-
Keep in mind that the adhesive will make it difficult to pry the plate off. To loosen the adhesive, heat the plate with a device such as a hair dryer.
-
-
-

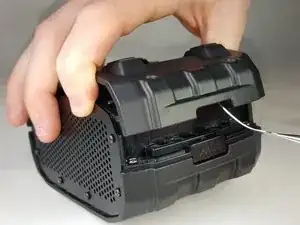

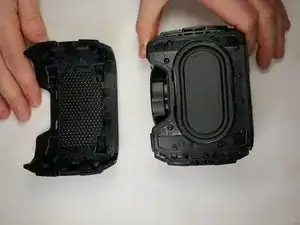

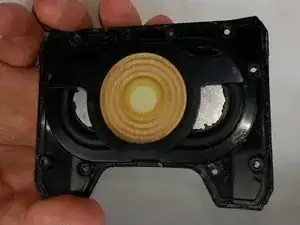

Once outer cover and speak cone/cover are removed, locate speaker wires
-
Each speaker has two wires: 1 red wire, 1 black wire
-
Check each wire for damage or if it has been disconnected from the speaker terminal
-
-
-
Once locating the damaged or disconnected wire, locate the proper speaker terminal to solder the wire to
-

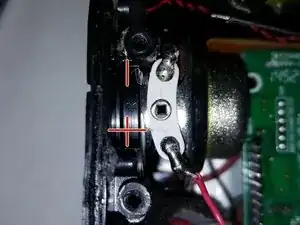

On each speaker terminal you can see the (+) and a (-) next to each terminal. The black wire correlates to the (-) and the red wire correlates to the (+)
-
If necessary, use wire strippers to strip off some of the plastic casing at the end wire to expose the metal fibers
-

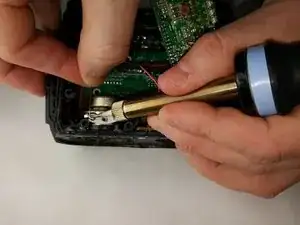

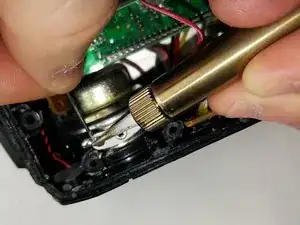

Using a soldering iron, carefully solder wire back to it's proper place on the speaker terminal
-
To reassemble your device, follow these instructions in reverse order. You may need to refer to previous guides.
