Braven BRV-HD Charging Port Replacement

Geschrieben von: Alex Ku

Kommentare: 4

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

45 Minuten

Einleitung

Following this guide will show you how to access and replace the charging port. The Braven BRV-HD Battery Replacement is a prerequisite for this guide.

Werkzeuge

Schritt 1

Placing the device on its back with the BRV-HD logo facing up, remove the eight 5mm hexagon 2.0 screws on the front panel.
Make sure the device is turned off before starting.

Schritt 2

Lift the front panel off of the speaker using a plastic opening tool.

Schritt 3

Placing the device with the back panel facing up, remove the eight 5mm hexagon 2.0 screws from the back panel.

Schritt 4

Lift the back panel off of the device with a plastic opening tool.

Schritt 5

Turning the device on its side, unscrew the four 15mm hexagon 2.0 screws on the charging port panel.

Schritt 6

Remove the outer rubber flap and the plastic side port panel.

Schritt 7

Place the device on its front.
Loosen the four 12mm Phillips screws in the four corners with a J1 screwdriver.
Loosen the two 8mm Phillips screws in the center with a J1 screwdriver.
These screws are difficult to reach and will require a screwdriver extension piece.

Schritt 8

Pull off the rubber sleeve surrounding the speaker using your hands.
There is adhesive binding the sleeve to the speaker and force will be required to remove the sleeve.

Schritt 9

Lift the black covering off of the speaker using both hands.
Loose screws that you were unable to remove with the screwdriver will be removed when you lift off the black covering.

Schritt 10

Remove the four 12mm Phillips screws securing the two battery brackets with a J1 screwdriver.
Move any wires aside to have better access to the screws securing the battery.

Schritt 11

Remove the two brackets that hold down the battery using your hands.

Schritt 12

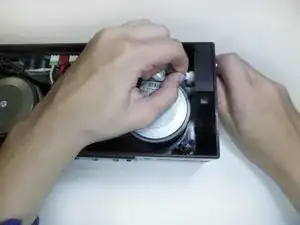

Use the plastic opening tool to lift up the battery.
Remove the battery using your hands.
The wires connecting the battery to the motherboard are still plugged in. Avoid pulling on the battery or these wires may break.

Schritt 13

Disconnect the wire attaching the battery to the motherboard.
There is green glue on the wire ports preventing the wires from falling out. Peel and remove this glue as necessary.
Be careful when pulling out the wires from their ports. The metal stems attached to the ports can break. A spudger or tweezers may help.

Schritt 14

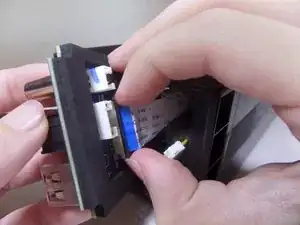

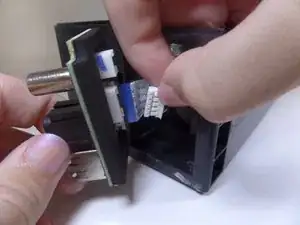

Disconnect the three plugs attached to the plastic charging port panel.
Remove and replace the plastic panel with a new one.
Be careful in removing the 3 plugs as they can break when being pulled out of their white sockets.
