Braven BRV-HD Motherboard Replacement

Geschrieben von: Courtney Van Buren
  • Kommentare: 0
Braven BRV-HD Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

50 Minuten

Einleitung

Following this guide will show you how to access and replace the motherboard. The Braven BRV-HD Battery Replacement is a prerequisite for this guide.

  1. GkF2Yo6YaixKXrov
    GkF2Yo6YaixKXrov
    G1JFDZL2hmpJrnwj

    • Placing the device on its back with the BRV-HD logo facing up, remove the eight 5mm hexagon 2.0 screws on the front panel.

    • Make sure the device is turned off before starting.

  2. II46INHXT1sDsuW1

    • Lift the front panel off of the speaker using a plastic opening tool.

  3. ZxgMoMRGMbeSdjLR
    ZxgMoMRGMbeSdjLR
    vjyNKGAlR5KLBEfC

    • Placing the device with the back panel facing up, remove the eight 5mm hexagon 2.0 screws from the back panel.

  4. YlPA6LoaGuNTqPXP

    • Lift the back panel off of the device with a plastic opening tool.

  5. NYMoVLYjZAbMAWL6
    NYMoVLYjZAbMAWL6
    QeAG1nZSUtoEqqlN

    • Turning the device on its side, unscrew the four 15mm hexagon 2.0 screws on the charging port panel.

  6. MPXq5OAtHtobggqr

    • Remove the outer rubber flap and the plastic side port panel.

  7. pMRRKpeHjQvEMYXw
    pMRRKpeHjQvEMYXw
    NubnMoJSsc4l6xPX

    • Place the device on its front.

    • Loosen the four 12mm Phillips screws in the four corners with a J1 screwdriver.

    • Loosen the two 8mm Phillips screws in the center with a J1 screwdriver.

    • These screws are difficult to reach and will require a screwdriver extension piece.

  8. 6m5rNFOsSUDOws5y

    • Pull off the rubber sleeve surrounding the speaker using your hands.

    • There is adhesive binding the sleeve to the speaker and force will be required to remove the sleeve.

  9. G6DRhSaYROejV431

    • Lift the black covering off of the speaker using both hands.

    • Loose screws that you were unable to remove with the screwdriver will be removed when you lift off the black covering.

  10. ZsgQ2BQ5CbveifvD

    • Remove the four 12mm Phillips screws securing the two battery brackets with a J1 screwdriver.

    • Move any wires aside to have better access to the screws securing the battery.

  11. BRSywFlrSWErG2fw

    • Remove the two brackets that hold down the battery using your hands.

  12. AJe2XvjePDtXuxlP
    AJe2XvjePDtXuxlP
    1NcK3R3i4RtJHrNL

    • Use the plastic opening tool to lift up the battery.

    • Remove the battery using your hands.

    • The wires connecting the battery to the motherboard are still plugged in. Avoid pulling on the battery or these wires may break.

  13. WNyEUtGTayYNlY5x

    • Disconnect the wire attaching the battery to the motherboard.

    • There is green glue on the wire ports preventing the wires from falling out. Peel and remove this glue as necessary.

    • Be careful when pulling out the wires from their ports. The metal stems attached to the ports can break. A spudger or tweezers may help.

  14. bUgYLnB3VyPmDsZP
    bUgYLnB3VyPmDsZP
    GjnuLDlFc5mddwLW
    6vvHLSFBfo2HuvOO

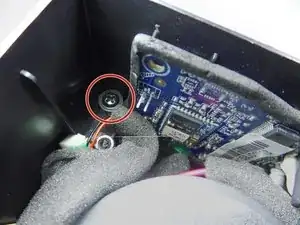

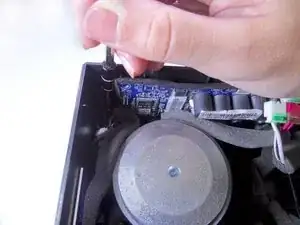

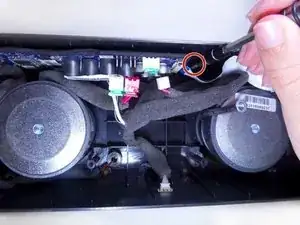

    • Locating the two screws on either side of the motherboard, unscrew the two 8 mm Phillips head screws using a J1 Phillips head screw driver.

  15. TlOEGOmvaoN6eL2o
    TlOEGOmvaoN6eL2o
    cY4wPRHa31pvKMZI
    bpCbOdGWcaeYotsW

    • Slide out the motherboard using your hands.

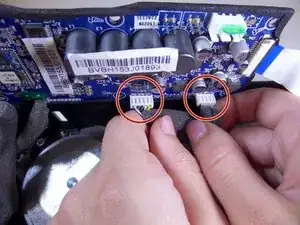

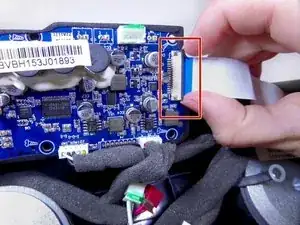

    • Unplug all the wires attaching the motherboard to the device.

    • Remove and replace motherboard.

    • Some wires are glued to the motherboard with a green glue. Remove the glue before removing the wires.

Abschluss

To reassemble your device, follow these instructions in reverse order.
