Brentwood TS-292B Power Cable Replacement

Geschrieben von: Elly Ayala
  • Kommentare: 0
Brentwood TS-292B Power Cable Replacement

Schwierigkeitsgrad

Difficult

Schritte

6

Zeitaufwand

1 Stunde

Einleitung

This guide will show how to remove and replace the power wire in a Brentwood TS-292B toaster.

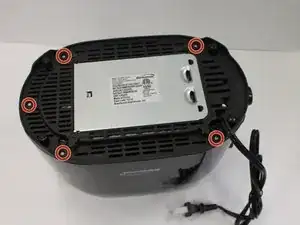

  1. 4xc2lfXYt12BKJ5A

    • Remove the five 6mm screws on the bottom of the toaster with a Phillips #2 screw driver.

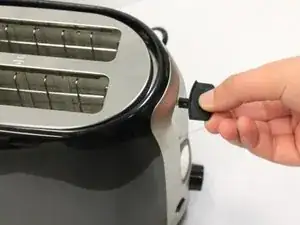

  2. syCMCOEARNHZJBUm

    • To remove the toasting lever, pull the lever away from the toaster.

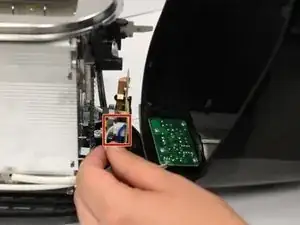

  3. 2DbwkUdRBGlwMgB2

    • Unplug the wire connecting the casing to the circuit board to fully remove the toaster casing.

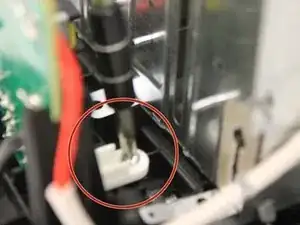

  4. FbETKcj5d2vtcKJF

    • Unscrew the wire bracket with a Phillips #2 screw driver.

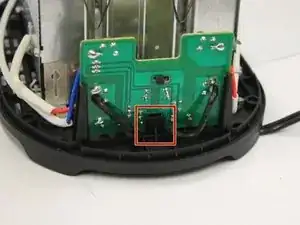

  5. rTThGlqrHPIYIrUE

    • Pull back on the black tab that is holding the circuit board in place.

    • While pulling the tab back, lift up on the circuit board.

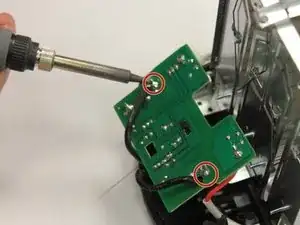

  6. drJQFn56QPKVYSf4

    • Desolder the power wire connections on the circuit board.

    • Desolder in a well ventilated area.

    • The tip of soldering iron is hot handle with caution.

Abschluss

To reassemble your device, follow these instructions in reverse order.
