Breville BKC600XL On/Off Switch Replacement

Geschrieben von: Antonio
  • Kommentare: 3
Breville BKC600XL On/Off Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 20 Minuten

Einleitung

Replacing the On/Off switch should the wiring become faulty.

  1. j3hn3JoNAdyyp3B5
    j3hn3JoNAdyyp3B5
    WiPcxUaiGIxHtSQ1
    pbvbojSKRsYOFBNN

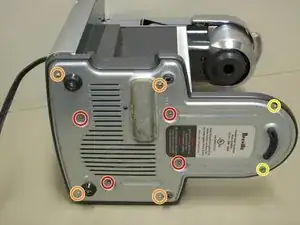

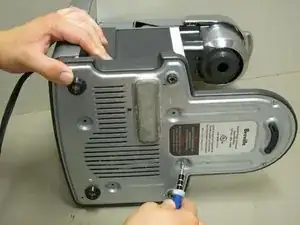

    • Use a Phillips #0 screwdriver to remove the following ten screws:

    • Four 18mm Phillips screws.

    • Four 9.75mm Phillips screws.

    • Two 8mm Phillips screws.

    • The cover will not remove entirely. Keep green ground wire attached to the cover.

  2. jGd1YD5mKWKJw1uP
    jGd1YD5mKWKJw1uP
    iJF5HsIgmYifl5TA

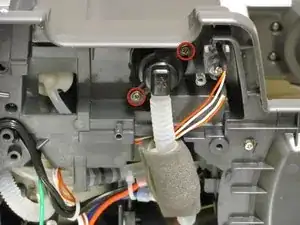

    • Remove the two 14.5 Phillips screws.

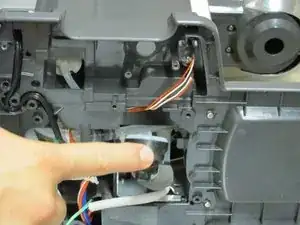

    • Ensure that only the water inlet valve can be moved.

  3. 2LaQKUV6pmScZAmV
    2LaQKUV6pmScZAmV
    p5mAbee5SXTQqaRo

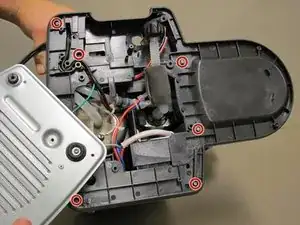

    • Use a Phillips #0 screwdriver to remove the following six screws:

    • Six 14.5mm Phillips screws.

  4. aHhWgDlgVJSQ2KVo
    aHhWgDlgVJSQ2KVo
    jmjjOleFJloSh15a

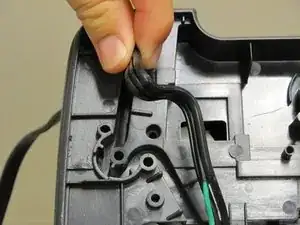

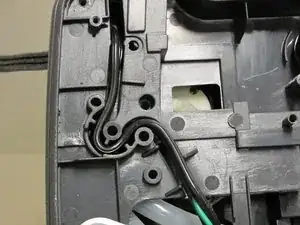

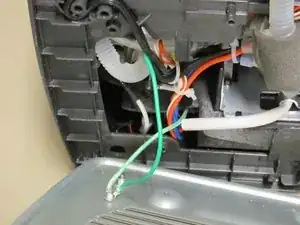

    • Remove the power cord from the groove. (the black cord that leads into the green wire.)

    • This creates more slack in the wire to give you more room to work with.

    • DO NOT remove green wire from the cover its attached to.

  5. rm6fJyVQvK351IEE

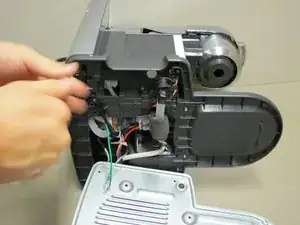

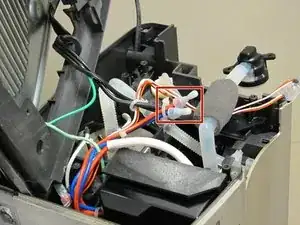

    • Carefully pull both the red and blue wires that covered at the tip.

    • Do not yank them out from the other end. Move them aside and out of the way.

  6. jVrYWZNM2MGyLobB

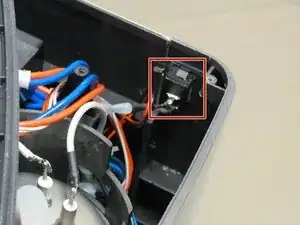

    • Carefully remove the On/Off Switch from its slot on the outside cover.

    • The wires for the switch need to be tied back into the wires that lead to the battery. If needed, use electrical tape.

    Thanks to this great post, I replaced my Breville BKC700XL On/Off Switch. The momentary switch is JR Products 12815 Black SPST Mini Mom-On/Off Switch, $8 on Amazon. https://www.amazon.com/dp/B002UC6QY0?psc...

    Now, my Breville single serve is like new. I almost ordered a new machine, then I found ifixit. Kudos to you guys.

    Boyd Gilbert -

Abschluss

To reassemble your device, follow these instructions in reverse order.
