Breville BKC600XL Spring Replacement

Geschrieben von: Antonio
  • Kommentare: 0
Breville BKC600XL Spring Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

15 - 20 Minuten

Einleitung

Replacing the spring should it fail to work.

  1. SSaKTFTyPTLBkpkR
    SSaKTFTyPTLBkpkR
    bQjGmEFJUhiWWEUD
    a4sVoMJ5kEs4rsYR

    • Remove the two 12mm black Phillips screws using a Phillips #0 screwdriver.

    • Reminder for reassembly; This bottom piece is first to be screwed back on.

  2. IBxT4a2fuUeL4G1X

    • Remove the two 12mm Phillips screws using a Phillips #0 screwdriver.

  3. aShEWGgUAe5OrvWh
    aShEWGgUAe5OrvWh
    LeLZDj2PbhvfPMei
    VRBcdl3TJFdRXhTP

    • Remove the grey plastic casing.

    • Remove the two 12mm hexagonal screws using a 1.5mm hex screwdriver.

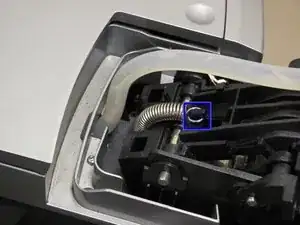

  4. nASldhmRoQqhYsHD

    • Identify the spring and the hook its attached to.

    • Carefully remove the spring.

Abschluss

To reassemble your device, follow these instructions in reverse order.
