Breville BKC600XL Water Valve Replacement

Geschrieben von: Antonio
  • Kommentare: 1
Breville BKC600XL Water Valve Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

15 - 20 Minuten

Einleitung

Replacing the water valve should it fail to work.

  1. SSaKTFTyPTLBkpkR
    SSaKTFTyPTLBkpkR
    bQjGmEFJUhiWWEUD
    a4sVoMJ5kEs4rsYR

    • Remove the two 12mm black Phillips screws using a Phillips #0 screwdriver.

    • Reminder for reassembly; This bottom piece is first to be screwed back on.

  2. IBxT4a2fuUeL4G1X

    • Remove the two 12mm Phillips screws using a Phillips #0 screwdriver.

  3. aShEWGgUAe5OrvWh
    aShEWGgUAe5OrvWh
    LeLZDj2PbhvfPMei
    VRBcdl3TJFdRXhTP

    • Remove the grey plastic casing.

    • Remove the two 12mm hexagonal screws using a 1.5mm hex screwdriver.

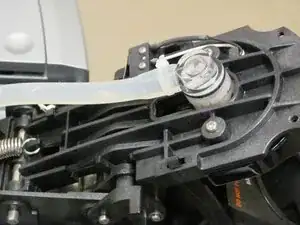

  4. wF5SVGYGOTJfAgCe

    • Cut the band connecting the hose to the water valve.

    • Remove the water valve.

    • Reminder for reassembly; You will need a new band to tie the hose back to the water valve.

Abschluss

To reassemble your device, follow these instructions in reverse order.
