Briggs and Stratton 675 Series Repair Air Filter Replacement

Geschrieben von: Taichi Nakahara
  • Kommentare: 2
Briggs and Stratton 675 Series Repair Air Filter Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 - 10 Minuten

Einleitung

Removing the air filter is really simple. It only takes one one screw to be removed and the rest can be done with your hands. The air filter should be replaced annually.

  1. DBQrjAvrFVvBDQFa

    • Make sure the the engine is off and the spark plug wire is removed and away from the spark plug before beginning.

    • Use a Flathead #4 screw driver to remove the 40mm screw that holds the air filter case in place.

  2. JOfOZB6xTjPbAZHP

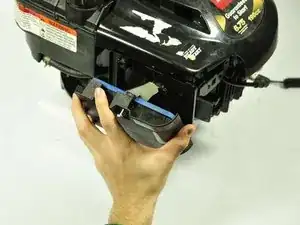

    • Use your hands to pull the air filter case out of the hinge at the bottom.

  3. HgjMBFllrJJmZXVC

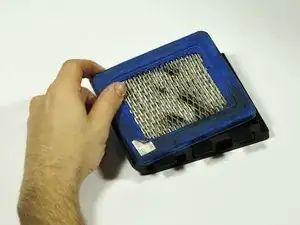

    • Simply remove the air filter with your hands.

Abschluss

To reassemble your device, follow these instructions in reverse order.
