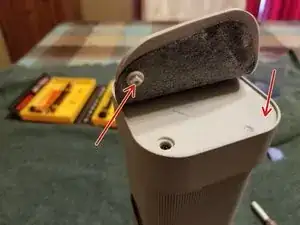

The bottom cover is simply glued in place. Use a flat tip screwdriver to lift a corner and then peel it off the bottom.
-

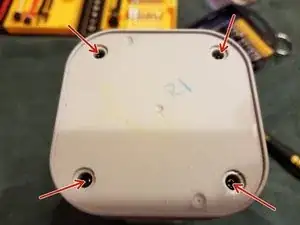

Use small flat tip screwdriver to pry 4 screw hole covers out.
-
-
-
The bottom cover should come right off when you pull on it.
-
You should see the battery now.
-
-
-

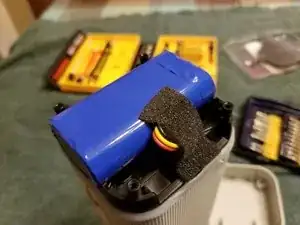

Remove the tape holding the battery in place.
-

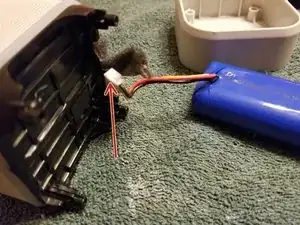

Unplug the battery by pulling apart white plastic connectors.
-
-
-
Connect new battery
-
The easiest way to fit the battery, is to put it into the bottom cover first and then put the cover back on the unit.
-
The bottom cover will go on one way only - Brookstone logo facing the front.
-
To reassemble your device, follow these instructions in reverse order.
3 Kommentare
any tips on removing metal screen to access inside? The charging socket broke on my speaker. Trying to replace plug socket.
Remove front button bezel and the rear panel, there is a grounding wire soldered to the screen in the battery compartment, just cut that. then it should just slide off.
Alex P -
Do you know where I can buy the battery? If the battery is out of service is it possible to use the speaker plugged? I want to know if the problem of my speaker is the battery or not. When I plug it the charging light blinks (red) and when I pair it with my phone it last working just a couple of seconds and then turn of despite is plugged.
