Brother PT-1010 Battery Replacement

Geschrieben von: Haley Sweet

Kommentare: 0

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

30 Sekunden - 1 Minute

Einleitung

The Brother PT-1010 requires 6-AAA batteries. The batteries are organized in two layers one on top of the other. This guide will inform you on proper battery replacement.

Schritt 1

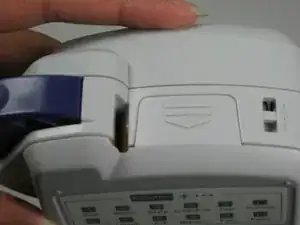

Turn device so you are looking down at the top

Schritt 2

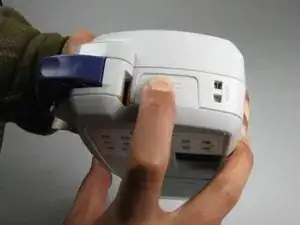

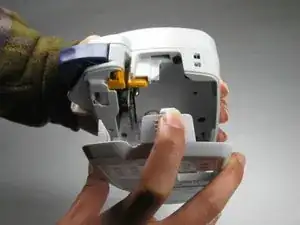

Press firmly on arrow indicator and pull panel toward you.

Schritt 3

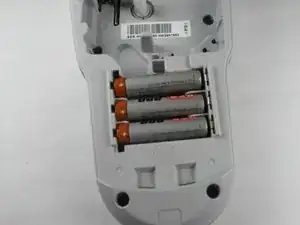

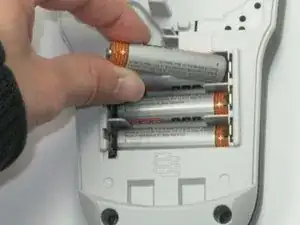

Remove dead batteries one at a time by pulling up on the side indicated with a + symbol.

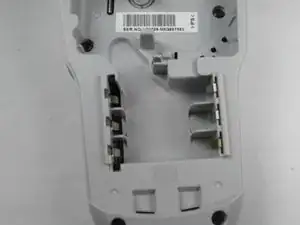

Make sure the battery compartment is empty and clear of debris.

Schritt 4

Insert the first battery with the flat side (indicated by a - symbol on the battery) facing to the left of the battery compartment.
Do the same thing to insert the next 2 batteries.

Schritt 5

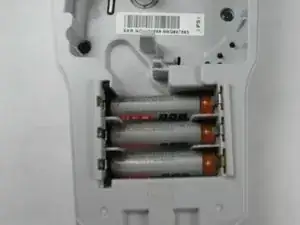

The next 3 batteries will be inserted on top of the others.
Insert the 4th battery with the flat side (indicated by the - symbol on the battery) facing to the right of the battery compartment.
