Brother PT-1010 Cutter Blade Replacement

Geschrieben von: Haley Sweet
  • Kommentare: 0
Brother PT-1010 Cutter Blade Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

1 Minute

Einleitung

  1. coIZSAVIsuCbDlsM

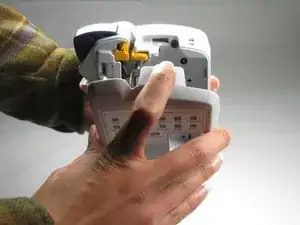

    • Open the back cover of the device by pressing on the indication arrow and pulling it open.

  2. D25DbLTuitaOqQqR

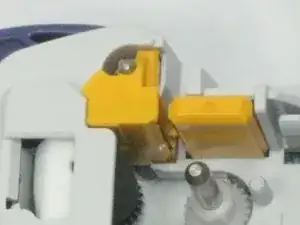

    • Locate the yellow cutter blade unit as shown in the photo.

  3. cRNO1XHUYscejvFt
    cRNO1XHUYscejvFt
    TWqqJKnDYcLSYcDX
    fg2vYD1NG6BBF4Ya

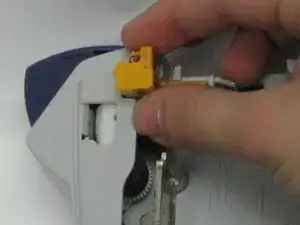

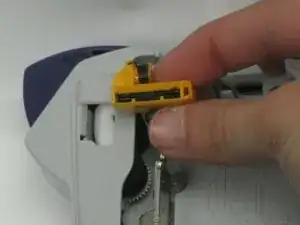

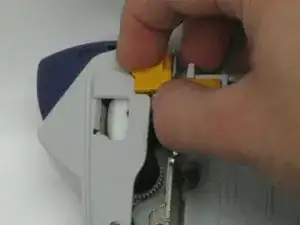

    • Using your thumb and forefinger, pull up, applying a small amount of pressure until the blade loosens and comes out.

    • Be very careful when pulling out the cutter blade, it is very sharp.

    • The Brother no. TL 5 Cutter Blade Unit is required for replacement.

Abschluss

To reassemble your device, follow these instructions in reverse order.
