In this guide, you will see how to fix your broken/damaged face plate on your Brother PT-1290.
-
-

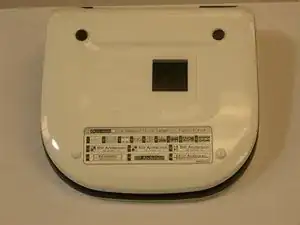

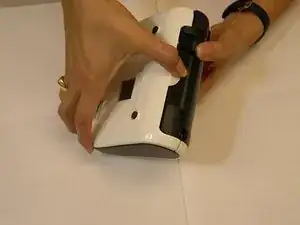

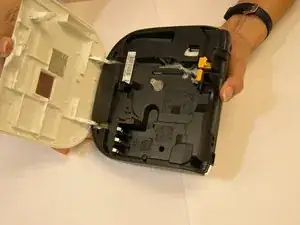

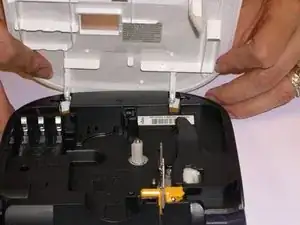

Turn the device to it's side toward the bottom of the keyboard. Then pop open the case and remove the batteries.
-
-
-

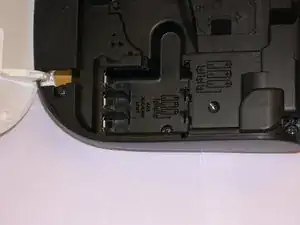

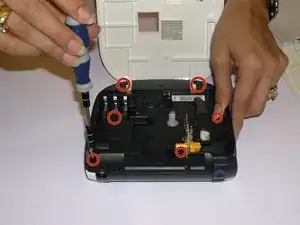

Remove all 1/4 inch screws(6 total) with a (+PH00) screwdriver. Open slowly not to damage the display data cable.
-
-
-

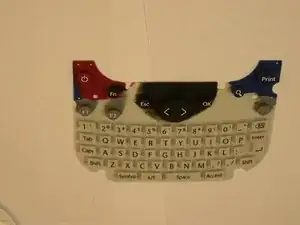

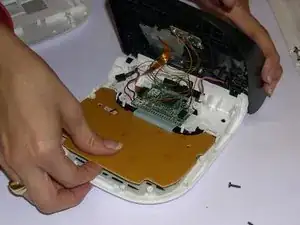

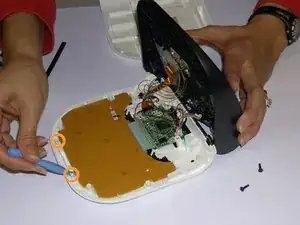

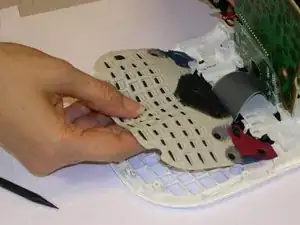

Use a plastic opening tool to remove the flat-panel membrane keyboard. Lift up and set aside.
-
-
-

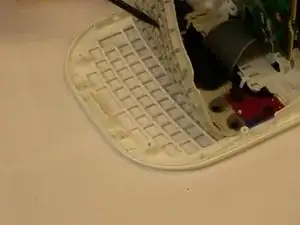

Use a spudger to aid in removing the keyboard.
-

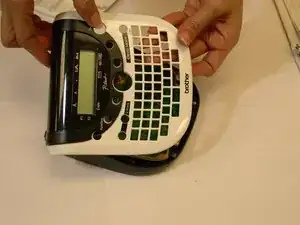

Gently lift out while removing the LCD screen that is connected to the data cable and finishing removing.
-
-
-

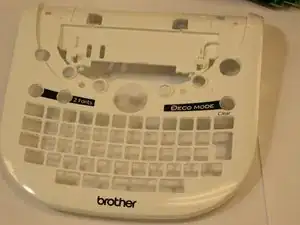

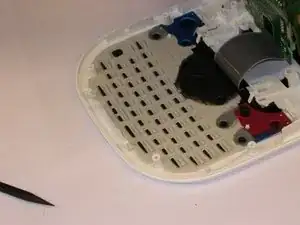

Now that you have removed your keyboard. Turn the device over carefully.
-

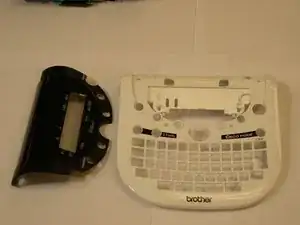

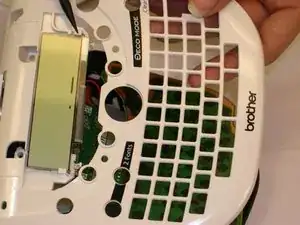

Pop of LCD black cover.
-
Use the spudger to gently press out the LCD screen.
-
To reassemble your device, follow these instructions in reverse order.
