In this guide, you will learn how to replace the cutter blade by removing the cover from the bottom of the device to gain access to the compartment containing batteries, tape cassette and up on the left hand side corner, the cutter blade.
Werkzeuge
-
-

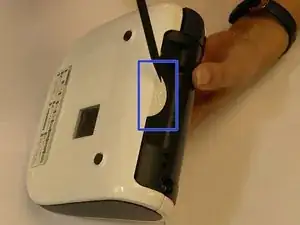

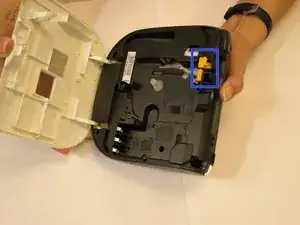

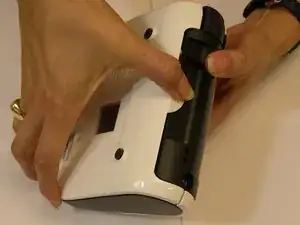

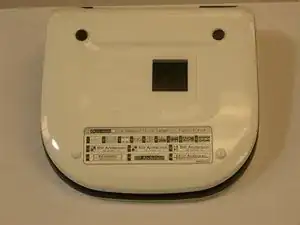

Flip the device over and locate the round part right next to the face plate. Gently but firmly, push it down. At the same time, while holding both sides of the device, split them apart carefully because some cables are attached to both sides.
-
-
-

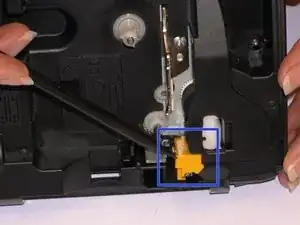

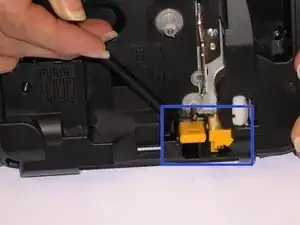

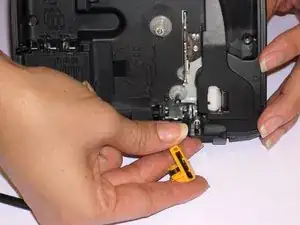

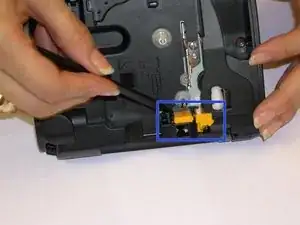

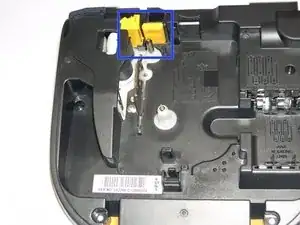

Release the blade by pushing it with the spudger and have the replacement ready to install.
-
-
-

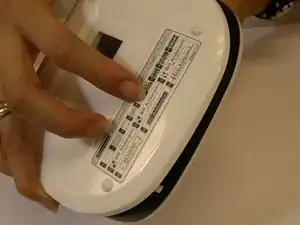

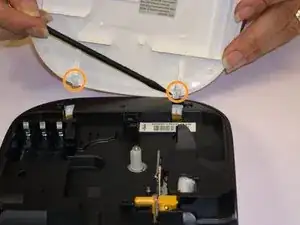

After replacing the cutter blade, you want to make sure the bottom cover is placed correctly and the two pins that lock the cover are aligned first. These pins are not a problem at the beginning while opening the cover, because they split open right away. However, you have to be careful when closing it to avoid any damage.
-
To reassemble your device, follow these instructions in reverse order.
