Einleitung
This is an easy-to-teardown device and shows you the inner workings of the label maker. The main components are batteries and the label cartridge for the tape, and a few screws to further tear down the device.
Werkzeuge
-
-
Start with your device off. The screen should be blank and not displaying anything.
-
Turn the device over so it's resting face down.
-

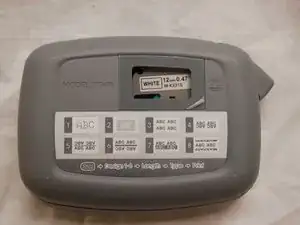

You should be able to see the model name of the label-maker, as well as a window in which you can view the label cartridge.
-
-
-

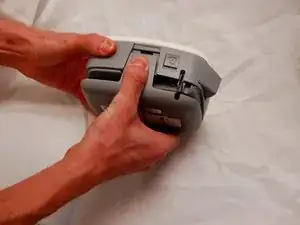

Using your thumb, press in and then upward on the fastener at the top of the device. The back of the device should come off easily.
-

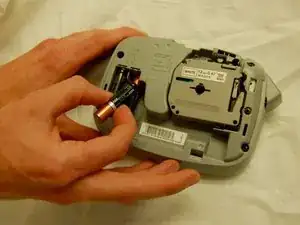

Remove the 4 batteries located on the left side of the device.
-
-
-

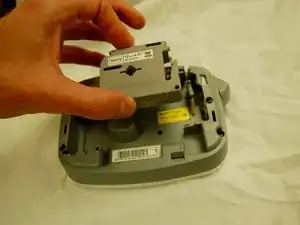

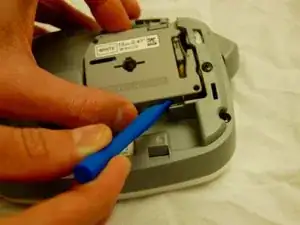

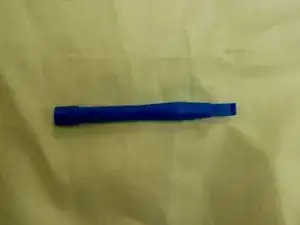

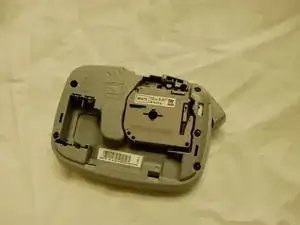

To remove the label cartridge from the device, use a plastic opening tool from your iFixit tool kit.
-
-
-

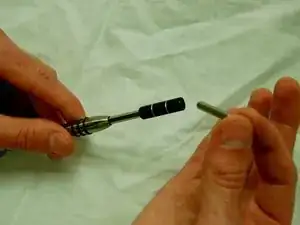

Attach the J1 Screwdriver Bit to the extension tool from your tool kit.
-

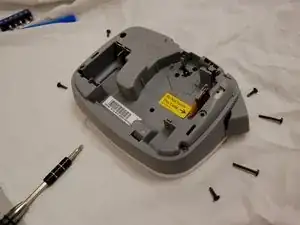

Remove all of the screws from the back of the device.
-
-
-

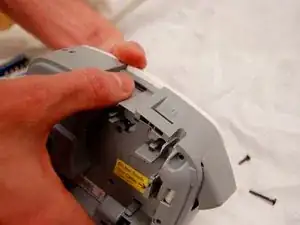

Once the screws have been removed, press as shown on the fastener.
-

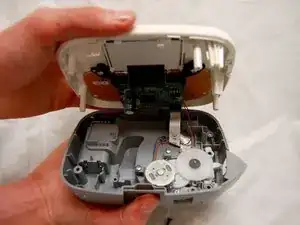

Carefully open the device.
-
