Brother PT-D200 Circuit Board Replacement

Geschrieben von: Jeston Mitchell
  • Kommentare: 0
Brother PT-D200 Circuit Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

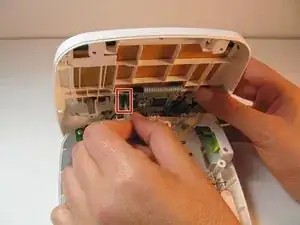

  1. iJ6Yn5rPNi2fkCSN

    • Gently pull out the ribbon cable from the circuit board.

    • The ribbon cable is very fragile.

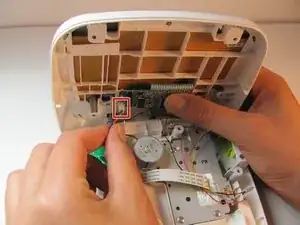

  2. RJdNDX2G2STHL3uD

    • Remove two-pin plastic connector from the circuit board.

    • Gently pull the two-pin connector from the circuit board to avoid damaging the board.

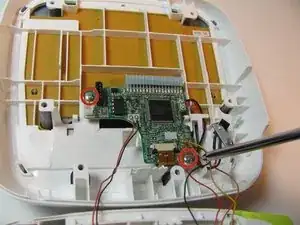

  3. GcK1Z1tXChmL3EOs
    GcK1Z1tXChmL3EOs
    Xb1K2sqQ6LZNDHXq

    • Remove the two 3/16" screws from the circuit board using the Helping Hand 1/4" screwdriver.

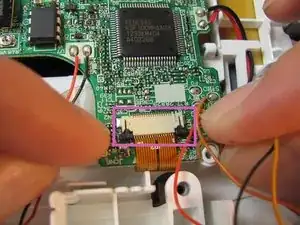

  4. XiCaNUjf2l14pgDj

    • Release the two black clips that hold the LCD cable ribbon in place. To release, pull the clips towards the ribbon.

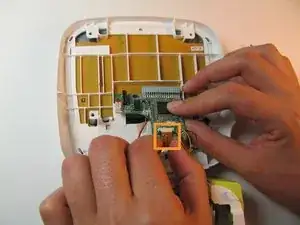

  5. speFloPZflnpxLrm

    • Disconnect the LCD ribbon cable from the circuit board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
