Brother PT-D200 Cutter Blade Replacement

Geschrieben von: Blaire McCreary
  • Kommentare: 1
Brother PT-D200 Cutter Blade Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

30 Sekunden - 1 Minute

Einleitung

This guide will walk you through the process of replacing a dull or broken cutter blade on a Brother PT-D200.

  1. PhSL2lUZMSVYhByo
    PhSL2lUZMSVYhByo
    lmWWxTPYaG4waPDI

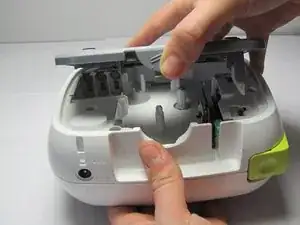

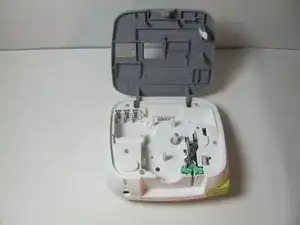

    • Open the back panel of the device by pressing down on and then pulling the indication arrows on the top center of the cover upward towards you.

  2. 15HA55JtVYvFy6Xo

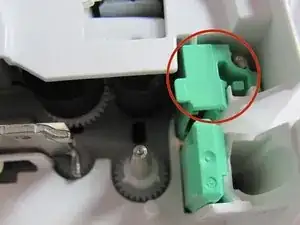

    • Locate the cutter blade unit (mint green) as shown in the picture.

  3. S13tqedSsLPRhpBP
    S13tqedSsLPRhpBP
    FaLHnCNsycoUqeYA

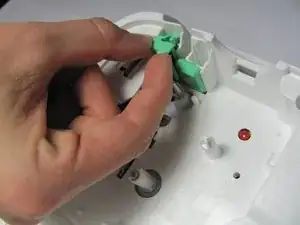

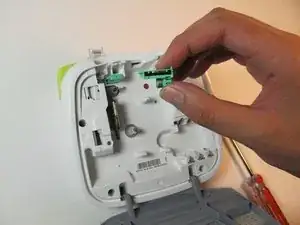

    • Using the thumb and forefinger, pull up, applying a moderate amount of pressure until the cutter blade unit loosens and is removed.

    • The blade is sharp.

Abschluss

To reassemble your device, follow these instructions in reverse order.
