Brother PT-D200 LCD Screen Replacement

Geschrieben von: Jeston Mitchell
  • Kommentare: 0
Brother PT-D200 LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

15 - 30 Minuten

Einleitung

This guide will walk you through the process of replacing a dead or broken LCD screen on a Brother PT-D200.

  1. qQOTWnCVigvZBqFW

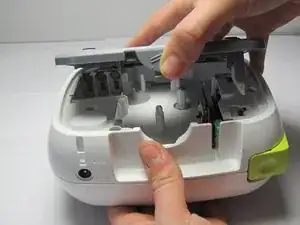

    • Flip the device over and press down on the indication arrows located at the top center of the back cover and pull it open.

  2. SOfK1tDoqtUHHZuT

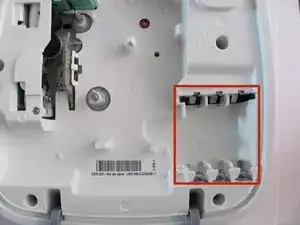

    • Remove the six AAA batteries.

  3. ZrMw1CYx5WI1pDT2

    • Use the Helping Hand 1/4" screwdriver to unscrew the six 3/16" corner screws.

  4. PSUZGkysoVixXjUQ

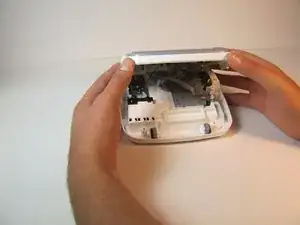

    • Close the back cover and then flip the device over and separate the top half from the bottom half as shown.

    • Be gentle when lifting the top of the device, there is a ribbon cable attaching the two halves together.

  5. iJ6Yn5rPNi2fkCSN

    • Gently pull out the ribbon cable from the circuit board.

    • The ribbon cable is very fragile.

  6. RJdNDX2G2STHL3uD

    • Remove two-pin plastic connector from the circuit board.

    • Gently pull the two-pin connector from the circuit board to avoid damaging the board.

  7. GcK1Z1tXChmL3EOs
    GcK1Z1tXChmL3EOs
    Xb1K2sqQ6LZNDHXq

    • Remove the two 3/16" screws from the circuit board using the Helping Hand 1/4" screwdriver.

  8. XiCaNUjf2l14pgDj

    • Release the two black clips that hold the LCD cable ribbon in place. To release, pull the clips towards the ribbon.

  9. speFloPZflnpxLrm

    • Disconnect the LCD ribbon cable from the circuit board.

  10. QiL1YeZvEBljJcVd

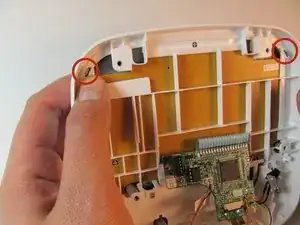

    • On the top portion of the device there are four grey clips locking the faceplate in place. The two top clips are circled in the image. The two others are located in the other corners of the device.

  11. uymJgoEwOchfjelH
    uymJgoEwOchfjelH
    BbggFgP1oBRWMSNC

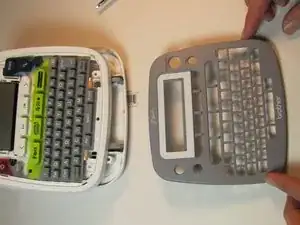

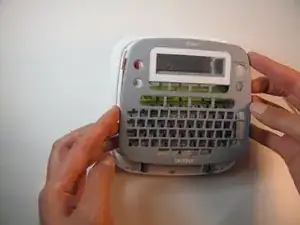

    • Pull the clips inward two at a time, first the top then the bottom, to snap the face plate off.

  12. uq1ZPyTFpM2WWGYE
    uq1ZPyTFpM2WWGYE
    V4UHV4IGISykkQe5

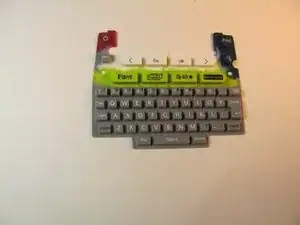

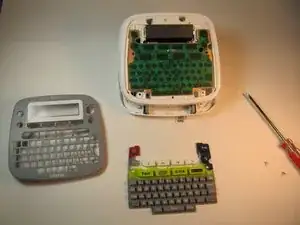

    • Peel off the rubber keyboard of the device.

  13. BaHnZHtQ6sbpNF2R
    BaHnZHtQ6sbpNF2R
    WIQCBxAwAFys56Tn

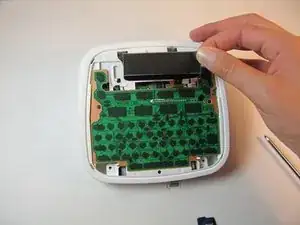

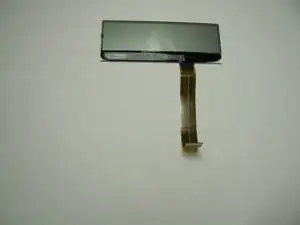

    • Lift the LCD screen out of place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
