Einleitung
The swivel wheel lock locks the swivel wheels to the frame. If the part breaks, it can easily be replaced by a 3D printed part to make the stroller fully functioning again.
This guide is created by five students of the TU Delft, Pieter, Mansour, Yvo, Suzanne and Rebecca, to make older models of Bugaboo strollers more repairable if spare parts are no longer available. The Bugaboo frames are very durable, and often outlive the period in which spare parts are available for order.
Parts that most often break were 3D-modeled, and the files were used to print new parts with a performance that is acceptable and safe according to Bugaboo requirements.
Werkzeuge
Ersatzteile
-
-

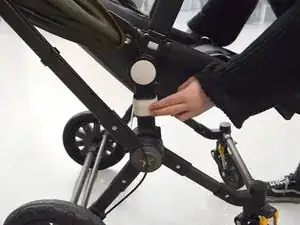

Push both the white square buttons under the seat at the same time, to remove the seat from the frame.
-
-
-

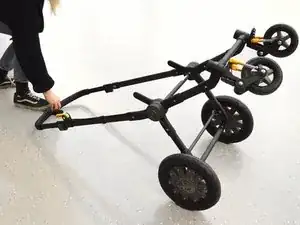

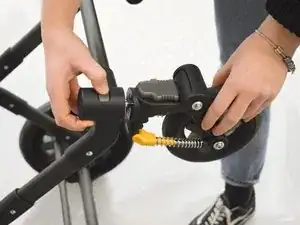

Put the frame with the handle on the ground like shown in the picture, to have better access to the swivel wheels.
-
-
-

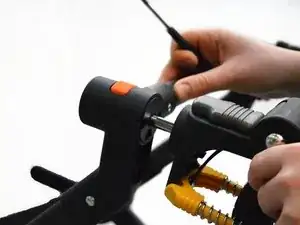

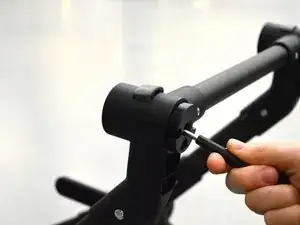

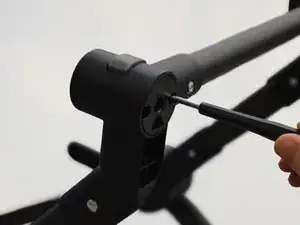

Remove the two screws on the black cylinder on the bottom with the Torx screwdriver.
-

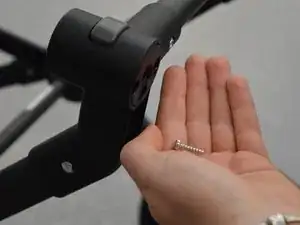

Make sure not to lose the screws, since you need them for the reassembly later.
-
-
-

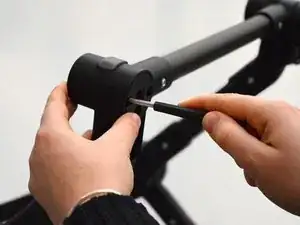

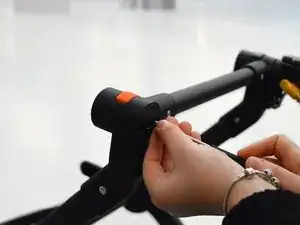

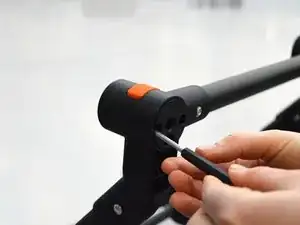

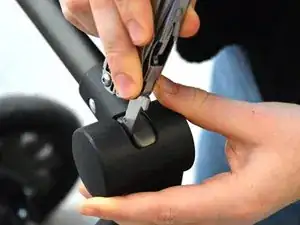

Push the old button, and place the flathead screwdriver behind the button
-
Push the button down and towards the opening of the cylinder.
-

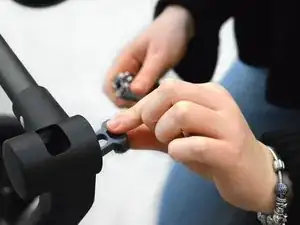

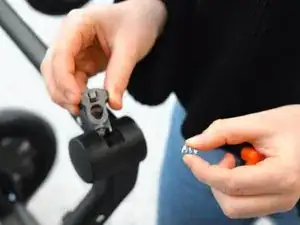

Take out the wheel lock button and the spring, and make sure not to lose the spring.
-
-
-

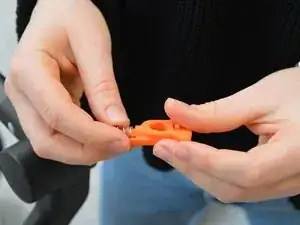

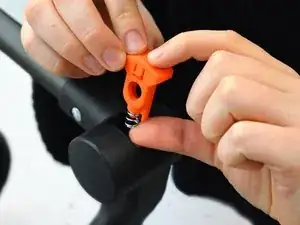

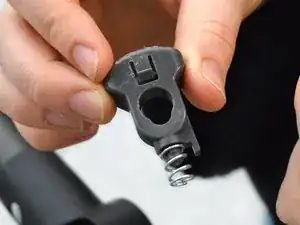

Put the new part with the spring back inside the cylinder, in the orientation shown in the picture.
-
-
-

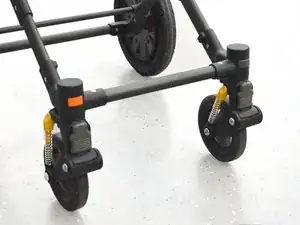

The repair is now finished. Flip the frame back onto four wheels.
-

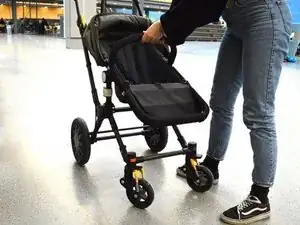

Place the seat back onto the frame.
-
