Follow this guide to remove and disassemble the traveling valve. You can then inspect or replace the valve, itself, or any of its components.

  1. DQ3vNKpNe5SOhXRP
    DQ3vNKpNe5SOhXRP
    k6DGYQesDCl4Z1gY
    • Test pump performance by pumping 40 strokes.

    • An effective pump should return at least 10 liters.

  2. jNUQMGok1XJJTJ4S
    jNUQMGok1XJJTJ4S
    154DGnb4xBuSIoIb
    • Remove the two pins connecting the handle to the slider.

  3. QTXXVsap52akJUjk
    QTXXVsap52akJUjk
    o4dJdXOOUe1PfYmU
    • Pull the two lever arms away from the slider.

  4. S24ouNjlTwaBeRwC
    S24ouNjlTwaBeRwC
    C3KewUF6of1CCke1
    • Lift the two pins attaching the pump frame to the head and handle up, off of the pump frame.

  5. TFtScAuC2IlAQDXB
    TFtScAuC2IlAQDXB
    LykHRgRGNkHvMotQ
    nnkZVJuYKUlLTwSD
    • Throughout this step, make sure you support the handle and head with at least three hands.

    • Slide the bearing rod out of the head.

    • Inspect the bearing rod and head for any wear or tear.

  6. JkCv6eFfdiQqx2PK
    • Remove the head and handle, and place them on a clean surface to prevent contamination.

  7. gxDq5mS6RIqWDcYK
    gxDq5mS6RIqWDcYK
    dWL3Dv12CVNwNfvm
    • Firmly lift the riser main slider with two hands.

    • Use caution not to drop the riser main, as this can damage the pump cylinder.

  8. vNKSmEiplMjP2q4o
    vNKSmEiplMjP2q4o
    lCVuHGuOjxAa1oIk
    yPMjUQ3ixJGQmhfB
    • Use a pipe wrench to fully loosen the above grade riser pipe.

  9. FxNrbQFeUmJ56nQo
    FxNrbQFeUmJ56nQo
    nvXaFfeUa1YLbBF1
    QNyTKqB1DHFUN3Ik
    • Lift the slider and riser main pipe.

    • Place a pump rod clamp around the rod, and tighten it securely against the pump rod.

    • Carefully lower the riser main and slider to allow it to rest on the rod clamp.

  10. fcSYcuAZuTc5XkSJ
    fcSYcuAZuTc5XkSJ
    HVyFBSeJVTk2JdaH
    TElsfSTUCfe3nrOa
    • Loosen and remove both the pump rod jam nut and pump rod nut on the top of the slider.

  11. mylpGRfNIIqdM6BG
    mylpGRfNIIqdM6BG
    tZuBTYdgLGrkWyuo
    • Remove the riser main slider, and inspect it for wear and tear.

    • Set the slider in a sanitary place to prevent contamination.

  12. hNosNuOSApsMAQ3U
    hNosNuOSApsMAQ3U
    v5kno4NiSlrLKvPg
    5XtDUwSrfPwVYJiE
    • Remove the above grade riser pipe.

    • Firmly screw a T-handle onto the pump rod.

    • If you are replacing the above ground riser main, leave the T-handle attached until you are ready to install the replacement part.

  13. na4pccV2EqOvZlCA
    na4pccV2EqOvZlCA
    GXq6T6QDBiJvw4nD
    CUHyMxBuaDiNSLPY
    • Use a pipe wrench to loosen and remove the pump spout.

    • Inspect the spout for obstructions or potential contaminants.

    • Place the spout on a clean surface to prevent any contamination.

  14. lC5dsOxhSukwXhB1
    lC5dsOxhSukwXhB1
    eQblZaWpBFOLOPqX
    O5qaPMQS1cpK3pQD
    • Place one wrench on the top of one of the pump riser plate bolts.

    • Place another wrench around the bottom of the bolt.

    • Pull the wrenches apart to loosen the bolt.

    • Repeat this procedure for the remaining three bolts.

  15. 254AYHkskjnAUHss
    254AYHkskjnAUHss
    RkJjePWBdKYGewy4
    • Remove the four nuts and bolts securing the pump riser plate, and store them in a sanitary container such as a bucket.

  16. 4VONKJxdxPHLeoYp
    4VONKJxdxPHLeoYp
    nu4lOIhVVgLWkKgo
    • Rotate the pump plate 45 degrees. This will allow for a better grasp when lifting the plate.

  17. TT5oZcDZsAwHNWX5
    TT5oZcDZsAwHNWX5
    sNSShjZHSfTgeFia
    sj51pVJkbyQ2ekYD
    • Securely lift the T-handle several inches.

    • While 2 people support the T-handle, remove the pump rod clamp.

    • Lower the T-handle gently until the pump rod is supporting itself.

  18. n1RqvpBJufJeQhyP
    n1RqvpBJufJeQhyP
    6XwRBsagufMWaUO2
    ZeCqPKVuSZGI54cp
    • This particular pump is using a tripod with a block and tackle to lift the riser main. C-wrenches may also be used to lift the riser main.

    • Securely clamp and tighten the pipe elevator to the riser main below the spout exit.

  19. FTRDAvvrFGeOBdpa
    FTRDAvvrFGeOBdpa
    GDNlfZvqYZebwISK
    • Being careful not to let the rope slip, use the block and tackle to lift the riser main until the pipe elevator reaches the block and tackle.

  20. t5NSFr4CswpfGyHR
    t5NSFr4CswpfGyHR
    35gXtHq2PQry4Fqt
    NAGeQoMADvBjqPhw
    • Once the riser main has reached the block and tackle, tighten the base clamp against the riser main.

  21. iB6fQkcpKNehW6L5
    iB6fQkcpKNehW6L5
    RWVN3xjMMudYpAAX
    WLtasDNwLh3LMAvC
    • Secure the base clamp to the frame base using a bolt.

    • One bolt is typically sufficient to keep the base clamp in place, but you can add another bolt if you wish to further secure it.

  22. 1kR5eurJNpDVYx3q
    1kR5eurJNpDVYx3q
    Fc2JLCgIDndd3cWV
    INywqakyZOF3RVBx
    • While supporting the top portion of the pipe, carefully move the elevator clamp off of the pipe.

    • Lower the elevator clamp while providing tension towards the ground to prevent the ropes from tangling in the block and tackle.

  23. JXqdxnXxu4v2DLDR
    JXqdxnXxu4v2DLDR
    RHVBcvLHPYfFGTHf
    YEukmNdZOaDkbiH2
    • Attach and tighten the elevator clamp to the riser main as close to the bottom as possible.

  24. gdLxaF4GRJE5TfmL
    gdLxaF4GRJE5TfmL
    2e6gv3Fbx63Gr2YK
    • Once the elevator clamp is tight, provide tension on the rope.

    • While keeping tension on the rope to support the riser, loosen the base clamp.

  25. EFiCDZ6foDV6revt
    EFiCDZ6foDV6revt
    O4j1ZiDNy4fWLkQh
    ZlKp4VApDFvQoupH
    • Use the rope to pull the riser main up as far as comfortable.

    • Be sure to keep the rope within the confines of the tripod to prevent the tripod from pulling over.

    • Watch the top of the tripod to align the riser main in the support slot.

  26. PEytfP2j3OWHNoyO
    PEytfP2j3OWHNoyO
    ZoJGf33o2Sv5jPbi
    Gfr14DmnUquyDkow
    • Remove the clamp from the riser main, and repeat steps 23-25 until first joint is exposed.

  27. VJHBVuHHnISNBOIO
    VJHBVuHHnISNBOIO
    eRRw2tCdIXih3Tip
    OueSNBBYQDijYTqh
    • Once the first joint is exposed, tighten the base clamp below the joint.

  28. lZgxiLAWkLPPjok5
    • Remove the elevator clamp from the riser main, and secure it to the tripod to keep it out of the way.

  29. rwKbqWIyOCfQCwL6
    rwKbqWIyOCfQCwL6
    DGDrjQtjV6BQHKEC
    • Keep the pipe wrench a few inches above the joint in this step.

    • Using a pipe wrench, unscrew the first section of the riser main from the connection.

  30. TAgFfk1VMr4AdCFY
    TAgFfk1VMr4AdCFY
    cUrNG5PNUo2eyGNd
    HwAQJKVNLtU4dEDh
    • Secure a splash guard over the joint to prevent water from spraying out of the connection when separated.

    • Using the pipe wrench, loosen the riser main until water begins to spray into the splash guard.

    • Do not loosen it any further until the water has stopped spraying.

  31. qTd6uClN1PTV1E4B
    qTd6uClN1PTV1E4B
    AajjT3JJGVhMIhcW
    feeQBJkeenXSq5ho
    • Remove the splash guard, and finish loosening the riser main.

    • Remove the first section of the riser main by lifting it straight up, while supporting the top of the section and keeping the pipe within the support slot on the top of the tripod.

  32. 1IBKjiDwJPloNdPc
    1IBKjiDwJPloNdPc
    HoSkdsC4JHWeugeK
    oWcLJ2Z2V2UueKHL
    • Attach and tighten the rod clamp a few inches below the first pump rod connection.

  33. Vfa6KBkXhEFb4yQI
    Vfa6KBkXhEFb4yQI
    GKLBT2bhvsTTISYB
    TM5HPDICkjU4ZFYT
    • Using two crescent wrenches, unscrew the pump rod from the remaining portion.

    • When the joint is separated, carefully lower the riser main to the ground.

  34. cZTHBCUxOIIUtq1D
    cZTHBCUxOIIUtq1D
    1UWfqHme44oqfkeJ
    WKM6UHWEpM1G3kVm
    • Carefully lower the riser main, horizontally, and place it in a sanitary place, preferably resting above the ground, to prevent contamination.

  35. sBwsYCRyfHCoIyam
    sBwsYCRyfHCoIyam
    QfrJAaPwkSb4TZdU
    UxnwywIwfA5MoOIV
    • Remove the T-handle from the separated pump rod.

    • Attach the T-handle to the remaining pump rod.

    • Remove the rod clamp and repeat steps 29-35 until the riser main is completely removed, or until the broken section is reached.

  36. 4Zpi2j2XIhUmGsWM
    • Make sure to keep the cylinder off the ground to prevent contamination.

  37. shChnYNna56dcDEJ
    shChnYNna56dcDEJ
    Zb6TuefIf4OuywhL
    AUbiYaesdXa4ZFwX
    • Using two pipe wrenches, unscrew the cylinder from the riser main.

  38. 5AxejAkeaRJefwto
    5AxejAkeaRJefwto
    P5iawApnfvbTSfFK
    • Slowly pull the cylinder off of the pump rod, exposing the traveling valve and foot valve.

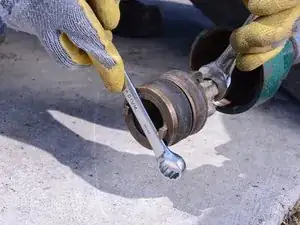

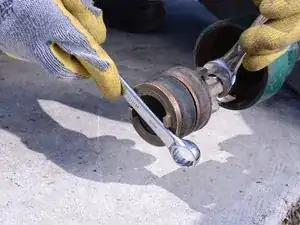

  39. C1jTFBYPMfhw5ODl
    C1jTFBYPMfhw5ODl
    wKuJmTUZVlMsygfm
    skGiRIqdBQaxMXck
    • Insert a wrench into the slots located at the bottom of the traveling valve.

    • Using another wrench for leverage, unscrew the valve off the pump rod.

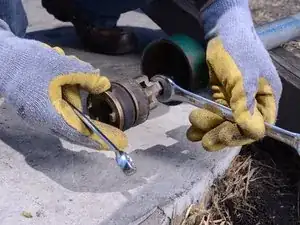

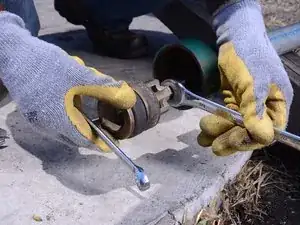

  40. ErHAti3LwO5aPITA
    ErHAti3LwO5aPITA
    kyJgacpDRikbi6Dr
    • Unscrew the valve from the pump rod.

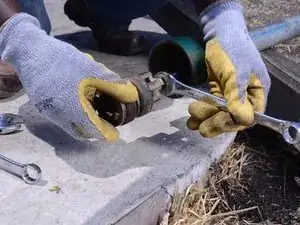

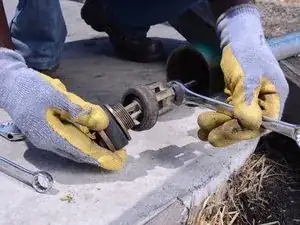

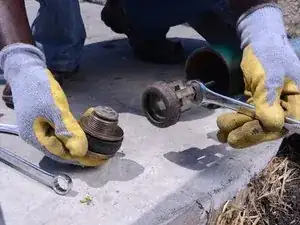

  41. bEWwBi2L12LAPZC4
    bEWwBi2L12LAPZC4
    fouXQIOZtPFZluWK
    fGWYRQoX5qtPt6t1
    • Be careful to keep the valve parts off the ground.

    • Check the valve components for signs of wear and tear.

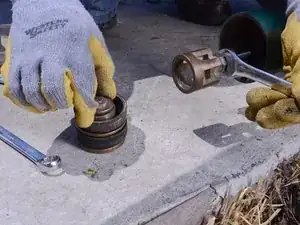

  42. VAZwCOAKuta6HA1P
    VAZwCOAKuta6HA1P
    MdoTTnt3xLHyU5jc
    • Remove the poppet from the valve to check for signs of wear.

    • Be sure to take note of the order and direction of the components for reassembly. This is essential, as the pump will not work if the valve is not reinstalled correctly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
