CASIO CDP-230R Button Panel Replacement

Geschrieben von: Areli Reyes
  • Kommentare: 5
CASIO CDP-230R Button Panel Replacement

Schwierigkeitsgrad

Easy

Schritte

14

Zeitaufwand

25 - 40 Minuten

Einleitung

In this guide, we will teach you how to replace the button panel on the CASIO CDP-230R. To replace the button panel, there are two circuit boards that will be removed. One circuit board is green and the other is yellow.

Werkzeuge

  1. KNhIAivsjPNXfIHf
    KNhIAivsjPNXfIHf
    TCfMn5wS4aQmVP2y
    IwUeKXGABWVrcCK3

    • Flip the keyboard upside down, with the keys on a flat surface.

    • Remove the three black 14mm Japanese Industrial Standard (J) head screws using a J1 screwdriver on the top half of the outermost side panel.

    We have this model and the pitch is bending intermittently on it’s own. Do you think disconnecting the bending ‘wheel’ would stop this or is it more likely to be a faulty chip?

    Thank you for any help!

    Ryan -

  2. Rk2PhnZquCkcGxoF
    Rk2PhnZquCkcGxoF
    XFRTcilcBKZXO4At
    jJXJZYR5HPYbHrUb

    • Use two hands to grab the side panel from both sides.

    • Pull the panel apart from the device one side at a time.

    • There will be popping sounds when you remove this panel.

    • One side panel will not have an orange & white cable connected to it.

  3. bVqtM1E332XLMrKe
    bVqtM1E332XLMrKe
    WOlEJt1XUhisbsBd
    fY1QsqLhDeZl3Idm

    • Remove the three silver 10mm screws with a J1 screwdriver on the bottom half of the innermost side panel of the device.

    • One side panel will not have an orange & white cable running through.

  4. M2oHEHH51GIQ6LJj
    M2oHEHH51GIQ6LJj
    NiDWKKMvpZKZ3ySp
    lKy3Ct1wS6sNU6Br

    • Remove the innermost side panel by pinching the top and bottom of the panel and pulling the panel off with both hands.

    • There will be popping sounds when you remove this panel.

    • Repeat steps one through four to remove the other side panel of the keyboard.

    In my model CDP230, upon removing the inner most side panel, 2 screw brackets will come loose each side. It will fall somewhere behind - you will need these when closing once again the panels. It has its own alcove but because the keyboard is now on its back (flipped), it will naturally fall out. What I did was to place the keyboard in its natural upright position when closing the inner and outer panel. And placing this screw bracket at closing the inner bracket.

    Tajuddin A -

  5. JnyCZHPrwVJK3DjO
    JnyCZHPrwVJK3DjO
    SWwxdANwpN6iRBlI
    HKpE5QO1ukYad1Fj

    • Remove the two black 30 mm J head screws with a J1 screwdriver to remove the long black bar.

    • Remove the four silver 8mm x 2mm J head screws with a J1 screwdriver and the two brackets from the back panel.

    • There will be two screws per bracket.

  6. ZNwuJ21s32mBLxsp
    ZNwuJ21s32mBLxsp
    ebUmAOdeKlp4rMKZ
    LsCGHKYEi3eSNTG2

    • Remove the eight silver 10mm x 1.5mm J head screws with a J1 screwdriver and the square tabs from the back panel.

    • Remove the eight silver 10mm J head screws with a J1 screwdriver underneath the square tabs.

  7. BBAxICZEbGETEoOv
    BBAxICZEbGETEoOv
    s3LMEWey1hmnuXmW
    nmsgJqTfGCZimWcx

    • Remove the 36 silver 10mm J head screws with a J1 screwdriver from the back panel.

  8. tC2ZwRw5es6st2Sc
    tC2ZwRw5es6st2Sc
    GYkYugWZOpOcM5AJ
    HVYpXEvjf1Ca4XEk

    • Place a hand on the front panel and speakers and carefully flip the keyboard over with the keys facing up.

    • Having a extra pair of hands will be useful.

    • Grab the center of the front panel with two hands and lift to remove panel.

    • Grab the speakers from the sides and lift to remove. Once you have done this for the first speaker, repeat with the second speaker.

    It seems impossible to take the front panel out unless I break it. How did you do it?

    Aaron Vincke -

    I’m having the same issue. Did you ever figure out how to remove the front panel? Thanks

    silverbellrental -

    My experience 1st time doing it was terrible because of the double sided adhesive tape applied by the factory. So with gentle traction and plenty of patience it did finally give way. The second time around it was much easier.

    Tajuddin A -

  9. I4nduduW13VXRAgt
    I4nduduW13VXRAgt
    hV6jSrAdGAKgcLb4

    • The main circuit board is located on the green side of the button panel. The main circuit board is the smaller green board.

    • Grasp the white ribbon lined with foam and pull up to remove from the main circuit board.

    • Remove the four silver 8mm x 2mm J head screws with a J1 screwdriver.

  10. lAhdXaWhAEGf1EAX

    • Lift the main circuit board from the button panel.

  11. xxvB3fUHDU3KwJVo
    xxvB3fUHDU3KwJVo
    iNuTQVICw12nvDQJ
    r4iUSQGyPNCObG2U

    • Grip the white plastic end of the orange and white cables that is attached to the right side of the main circuit board and pull to the right.

    • Repeat for the orange and white cables attached to the left side of the main circuit board and pull up.

  12. vxnkfef3TXkHbJN6

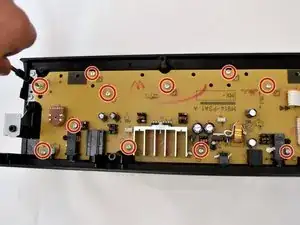

    vxnkfef3TXkHbJN6

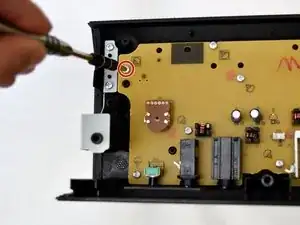

    oqGncxbXqcEBthFT

    • Remove the 11 7.5mm J head screws from the yellow button panel by using a J1 screwdriver.

  13. CMtcpgMASGoScekb

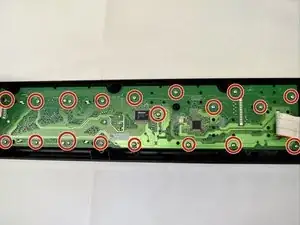

    CMtcpgMASGoScekb

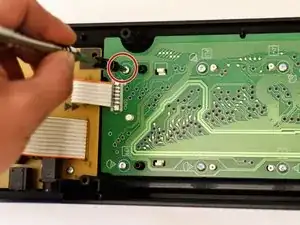

    wWtNoLvNiRtcIAfX

    • Remove the 19 9mm J head screws from the green button panel by using a J1 screwdriver.

  14. UPFQxuGiUeStHCbL

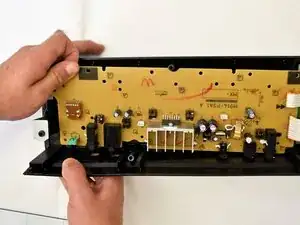

    UPFQxuGiUeStHCbL

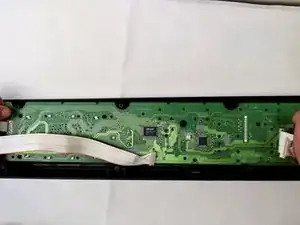

    xGWiBCjE2nBWWMSL

    • Lift the yellow side of the button panel first, then lift green side to remove the entire button panel together.

    • The yellow button panel will make a pop sound when removing it.

    • The volume knob will come off with the yellow circuit board. To place the knob back, snap it back into the socket on the outside of the front panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
