CASIO CDP-230R Key Replacement

Geschrieben von: Areli Reyes

Kommentare: 17

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

25 - 40 Minuten

Einleitung

This guide will show you how to replace your CASIO CDP-230R keys, move them to remove anything jamming your keys, or to move them to clean them.

Werkzeuge

JIS #1

Schritt 1

Flip the keyboard upside down, with the keys on a flat surface.

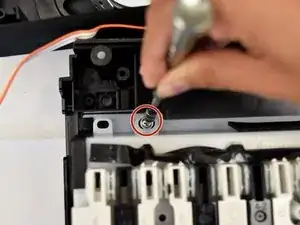

Remove the three black 14mm Japanese Industrial Standard (J) head screws using a J1 screwdriver on the top half of the outermost side panel.

We have this model and the pitch is bending intermittently on it’s own. Do you think disconnecting the bending ‘wheel’ would stop this or is it more likely to be a faulty chip?

Thank you for any help!

Ryan - 19/01/21

Schritt 2

Use two hands to grab the side panel from both sides.
Pull the panel apart from the device one side at a time.
There will be popping sounds when you remove this panel.
One side panel will not have an orange & white cable connected to it.

Schritt 3

Remove the three silver 10mm screws with a J1 screwdriver on the bottom half of the innermost side panel of the device.
One side panel will not have an orange & white cable running through.

Schritt 4

Remove the innermost side panel by pinching the top and bottom of the panel and pulling the panel off with both hands.
There will be popping sounds when you remove this panel.
Repeat steps one through four to remove the other side panel of the keyboard.

In my model CDP230, upon removing the inner most side panel, 2 screw brackets will come loose each side. It will fall somewhere behind - you will need these when closing once again the panels. It has its own alcove but because the keyboard is now on its back (flipped), it will naturally fall out. What I did was to place the keyboard in its natural upright position when closing the inner and outer panel. And placing this screw bracket at closing the inner bracket.

Tajuddin A - 16/01/21

Schritt 5

Remove the two black 30 mm J head screws with a J1 screwdriver to remove the long black bar.
Remove the four silver 8mm x 2mm J head screws with a J1 screwdriver and the two brackets from the back panel.
There will be two screws per bracket.

Schritt 6

Remove the eight silver 10mm x 1.5mm J head screws with a J1 screwdriver and the square tabs from the back panel.
Remove the eight silver 10mm J head screws with a J1 screwdriver underneath the square tabs.

Schritt 7

Remove the 36 silver 10mm J head screws with a J1 screwdriver from the back panel.

Schritt 8

Place a hand on the front panel and speakers and carefully flip the keyboard over with the keys facing up.
Having a extra pair of hands will be useful.
Grab the center of the front panel with two hands and lift to remove panel.
Grab the speakers from the sides and lift to remove. Once you have done this for the first speaker, repeat with the second speaker.

It seems impossible to take the front panel out unless I break it. How did you do it?

Aaron Vincke - 23/03/20

I’m having the same issue. Did you ever figure out how to remove the front panel? Thanks

silverbellrental - 10/12/20

My experience 1st time doing it was terrible because of the double sided adhesive tape applied by the factory. So with gentle traction and plenty of patience it did finally give way. The second time around it was much easier.

Tajuddin A - 16/01/21

Schritt 9

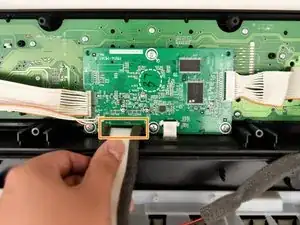

Locate the three screws behind the keys (left, center, and right).
Remove these 10mm J screws using a J1 screwdriver.
Grasp the white ribbon lined with foam and pull up to remove from the main circuit board.

Schritt 10

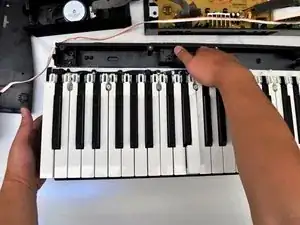

Place one hand on the side with fingers underneath the keys and one hand on the upper edge and lift off of the back panel.
Having an extra pair of hands will be useful.

Schritt 11

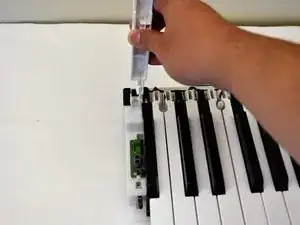

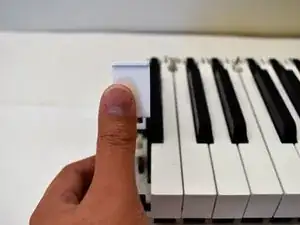

Pull up on the white key from the side nearest to you until the key lifts up.
Pull up on the two surrounding white keys before pulling up on the black key.

Schritt 12

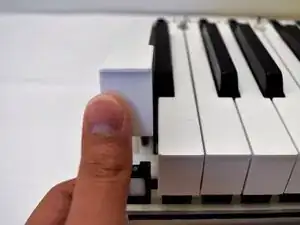

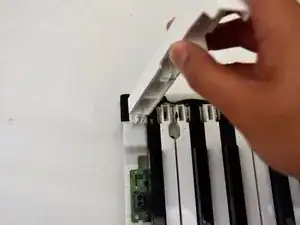

Wiggle the white key from side to side and pull up to detach it from the rest of the board.

Schritt 13

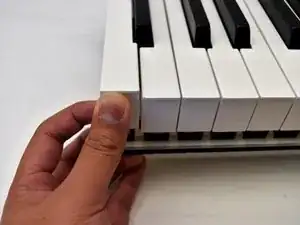

To reattach the white key, snap the key back in place.
Flip the keyboard so the keys are laying on a flat surface.

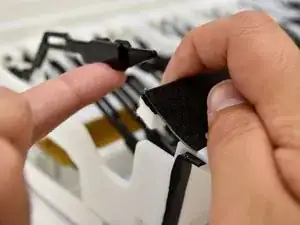

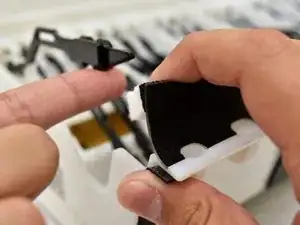

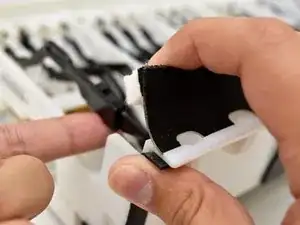

Pull up on the black and white felt to dislodge the black shank.
Push up on the white key while pulling the felt up to reposition the black shank underneath the felt.

Excellent ! blow - by - blow details ( until CASIO ultimately provides it )

To keep our investment going … least until a slicker version comes out

With awesome features , we might not be able to live without .

rafael quinones - 28/06/20

Thank you very much. The instructions did take me all the way through to replace several ruptured black and white hammer caps. However, no pointers given here on cap replacement. Sharing for prosperity sake.

Cap replacement is an easy affair. After removing the broken rubber pieces, remove excess grease to ease replacement. You should temporarily cover any holes with small piece of paper just in case the replacement cap slips from your finger and disappears. Identify correctly the B - black cap and W - white ones from you spare caps. The curved surface should be upward and the smaller opening slit should be facing inwards. Insert it using an above to below movement while holding the metal hammer steady. Don’t forget to reapply some grease upon completion.

A reflection. A professional keyboard repairman did suggest a complete replacement of all the hammer caps as they tend to break / rupture approximately the same time. So I had to do this keyboard surgery twice over a period of less than 5 months.

Tajuddin A - 16/01/21

Abschluss

To reassemble your device, follow step 13 and then the rest of the instructions in reverse order.
