CHI Original Power Cord Replacement

Geschrieben von: Eric Knigga
  • Kommentare: 8
CHI Original Power Cord Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide will show you the steps necessary for deconstruction and replacement of the CHI Original power cord.

  1. tDigfsEeVQbOVlg3
    tDigfsEeVQbOVlg3
    ZaMWuZQQFGfPBKFf

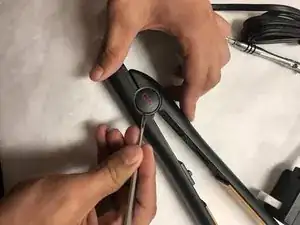

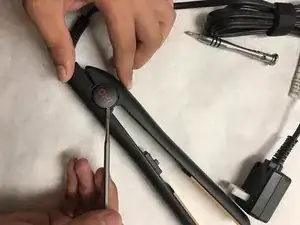

    • Insert a nylon or metal spudger under the plastic CHI spring covers. Pry them up to pop them off. Do this for each side.

    Where do I find a new power cord?

    ElenaStar* -

  2. avJYviL4BpyGGlYi

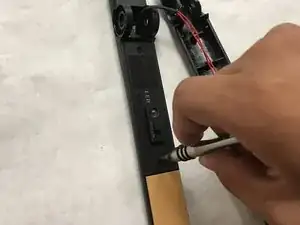

    • Remove the .53" long screw from the hinge pin.

    This picture is out of order

    fixitman -

    You should only have to remove the back two screws and not any screws near the switch.

    fixitman -

  3. sjSYUh5nlweGcwII

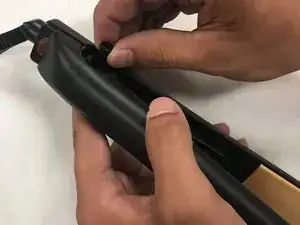

    • Remove the hinge pin.

  4. 5vpo3NKpFQmeGFcT

    • Separate the two halves of the CHI Original.

  5. SYakb6HZZAFLRWyv
    SYakb6HZZAFLRWyv
    BUBiIZ1mTsMHsK1O

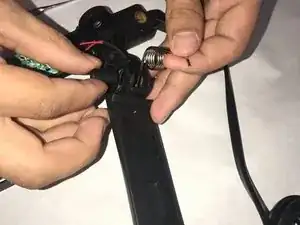

    • Remove the spring pin with a pair of pliers or tweezers.

    • Remove the spring.

  6. YlULE4kJksfErAnK
    YlULE4kJksfErAnK
    sIZRMu4BAO5gAwhL

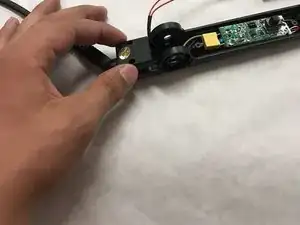

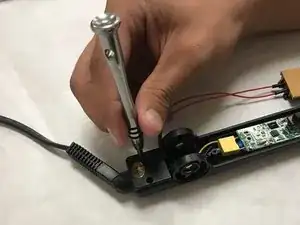

    • Remove (2) .31" Phillips head screws from back cover.

    • Remove cover.

  7. acgSZUWiWNUmIRXw

    • Gently pull upwards on the connection point and disconnect the power cord.

Abschluss

To reassemble your device, follow these instructions in reverse order.
