CHI Spin N Curl Rotating Curler Heating Element Replacement

Geschrieben von: Annalise White
  • Kommentare: 0
CHI Spin N Curl Rotating Curler Heating Element Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

25 - 45 Minuten

Einleitung

If given a faulty CHI Spin N Curl tool that will not heat up, utilize this replacement guide to receive detailed instructions on how to replace the ceramic fuse located under the heating element.

  1. QQAcNGQWaHpFd1Lu

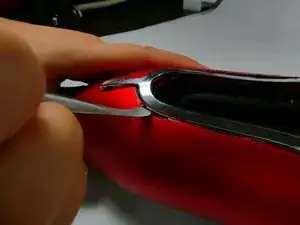

    • Use a metal spudger to pry off the silver, shiny trim.

  2. WXZIAikakUXuCYLf

    • Remove inner black housing of the CHI Spin N Curl using the metal spudger to pop it out.

  3. FmsguqA3EhGWYARm
    FmsguqA3EhGWYARm
    Rn4xAQ3Be5YLybSW

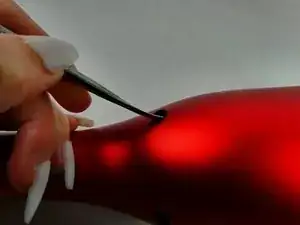

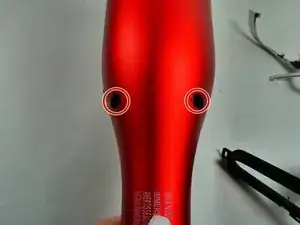

    • Use a 2 mm flathead to remove the two screws.

  4. kRANKNE1oydI6yAE
    kRANKNE1oydI6yAE
    vcPRTjNXG1CQKrly

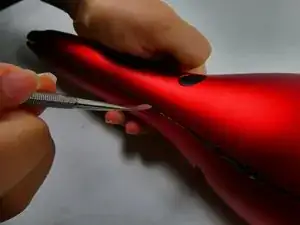

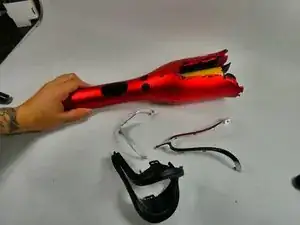

    • Use a metal spudger to pry open the seams of the device.

  5. QQBEivNkOQAGjYnW
    QQBEivNkOQAGjYnW
    pNw2qTyE6K1QwLGP
    1erXxJjucZYjIgyV

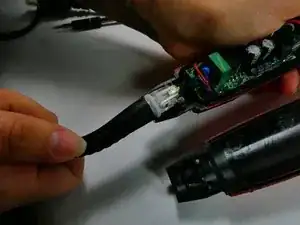

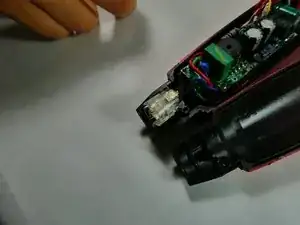

    • Toward the bottom of the device, grab the swivel power cord.

    • Gently pull the power cord to detach it from the CHI Spin N Curl

    • Replace the faulty cord when the original cord has been removed.

  6. i1nlmutp1VH2BuLh

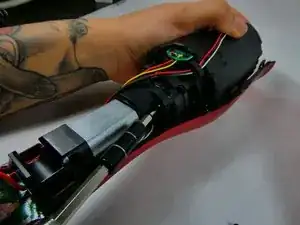

    • After following steps to open the CHI Spin N Curl, locate the heating element.

    • Remove screws on both sides of the heating element.

    • Once screws have been removed, then remove the heating element component.

    • Replace heating element once the original has been removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
