CHI Spin N Curl Rotating Curler Rotating Barrel Replacement

Geschrieben von: Annalise White
  • Kommentare: 0
CHI Spin N Curl Rotating Curler Rotating Barrel Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

30 Minuten

Einleitung

Do you need to replace the barrel of your CHI Spin N Curl Rotating Curler? If so, this guide is for you. This guide will walk you threw the replacement process in eight steps. Make sure you have a 2.0 mm Flathead Screwdriver, Metal Spudger and a Phillips screwdriver for this guide.

  1. QQAcNGQWaHpFd1Lu

    • Use a metal spudger to pry off the silver, shiny trim.

  2. WXZIAikakUXuCYLf

    • Remove inner black housing of the CHI Spin N Curl using the metal spudger to pop it out.

  3. FmsguqA3EhGWYARm
    FmsguqA3EhGWYARm
    Rn4xAQ3Be5YLybSW

    • Use a 2 mm flathead to remove the two screws.

  4. kRANKNE1oydI6yAE
    kRANKNE1oydI6yAE
    vcPRTjNXG1CQKrly

    • Use a metal spudger to pry open the seams of the device.

  5. QQBEivNkOQAGjYnW
    QQBEivNkOQAGjYnW
    pNw2qTyE6K1QwLGP
    1erXxJjucZYjIgyV

    • Toward the bottom of the device, grab the swivel power cord.

    • Gently pull the power cord to detach it from the CHI Spin N Curl

    • Replace the faulty cord when the original cord has been removed.

  6. i1nlmutp1VH2BuLh

    • After following steps to open the CHI Spin N Curl, locate the heating element.

    • Remove screws on both sides of the heating element.

    • Once screws have been removed, then remove the heating element component.

    • Replace heating element once the original has been removed.

  7. WXTLY3vrxT3Cw5TW

    • Remove all visible screws located near the barrel of the CHI Spin N Curl utilizing a Phillips #00 screwdriver.

    • Screws will be small and black.

  8. CPvESjEPCJQsBggs
    CPvESjEPCJQsBggs
    3avImvYSWRnAW531

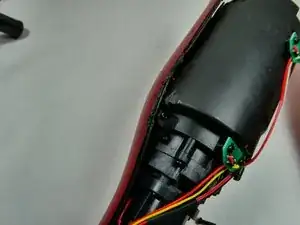

    • Remove all screws located near wires using a Phillips #00 screwdriver.

    • Once all surrounding screws have been removed, detach the rotating barrel.

    • Gently remove the rotating barrel and replace once removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
