CMT-CP1 Rotary encoder cleaning/replacing

Geschrieben von: Jacco Hogen Esch
  • Kommentare: 1
CMT-CP1 Rotary encoder cleaning/replacing

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

Keine Schätzung

Einleitung

Here I fix the rotary encoder volume control. This is a common problem they get dirty and become erratic.

  1. WD34TadAKsDDpOjM
    WD34TadAKsDDpOjM
    OGJ1D4KaJIXqDcac

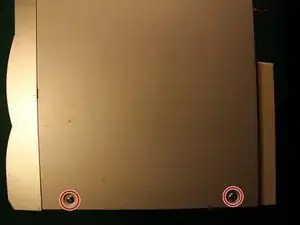

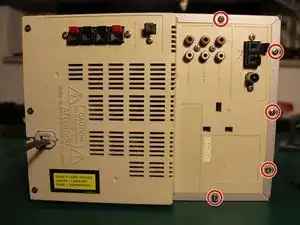

    • Remove the screws

  2. cPTNFPT2VsrhA4S2

    • Remove the flex cables with easy access

  3. vQal5QVVy3JemTuW
    vQal5QVVy3JemTuW
    v1jefGRFQNp5LJbm

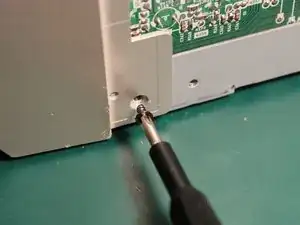

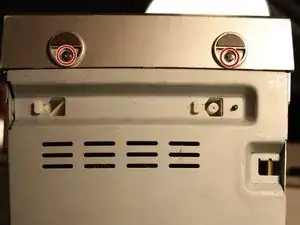

    • Remove the screws on both sides and on the bottom

  4. 5rjyAWpBtEImOcdq

    • Remove the front and the rest of the cables

  5. t2v2gSyWnWhYNQsr
    t2v2gSyWnWhYNQsr
    YaGQb66PGfGXHINu

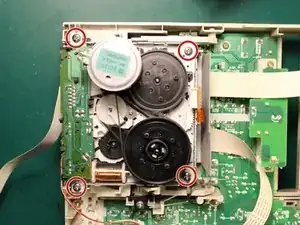

    • Remove the cassette deck (this is to access the screw beneath it)

  6. AXJKWbnwhA4oeUww

    • Remove the screws (you have to remove the casetdeck to access the orange screw)

  7. XFg5aMZkmahbrDXx
    XFg5aMZkmahbrDXx
    yHTUjI1OwAVLnwve

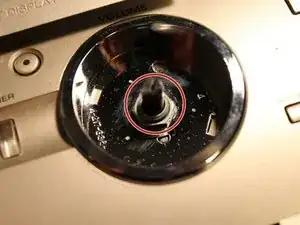

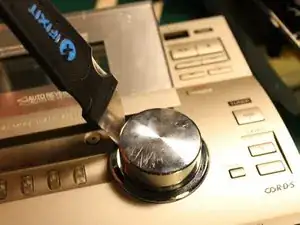

    • Remove the volume knob and the screw behind it

  8. QPxIXnxNWkCSD1kA

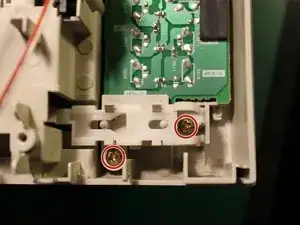

    • Remove the screws

  9. bVcQeDDeASNW1fyL

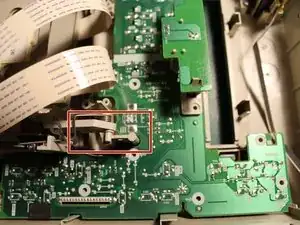

    • carefully lift up one side of the cassette deck and remove the pcb

  10. BCGIyqXiG3fmWKls

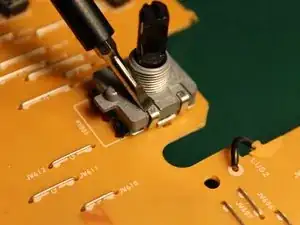

    • Remove the taps to the side carefully

  11. k4VJiPqSJIMNntbE
    k4VJiPqSJIMNntbE
    3UEC1SeYmkYIpAxR
    gCAB5BwDuc3kNDUd

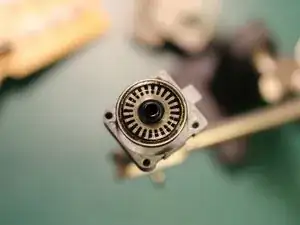

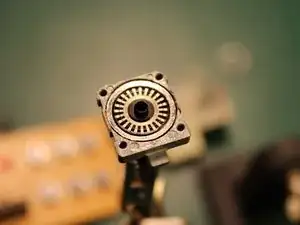

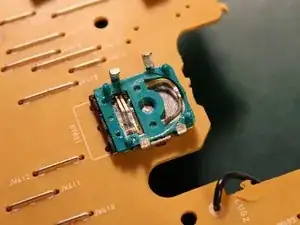

    • clean up your rotary encoder with a screwdriver, also the inside!

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Jacco Hogen Esch

Mitglied seit: 14/05/18

299 Reputation

Ein Kommentar

Hi Jacco, thanks for this guide. What device is this? As the instructions for disassembly are somewhat specific, this could be interesting. For cleaning the encoder, you seriously recommend to do that using a screwdriver? I find the spring contacts inside these encoders rather delicate typically and they would easily take damage if the wrong tool is used for cleaning. I must recommend to use 1) a lot of care, 2) nothing that is tougher than cotton buds, 3) alcohol, and 4) contact spray eventually to keep things clean and coated against future oxidation. Usually there is no need for scrubbing if contacts are gold plated. Oxidation might be an issue otherwise but that is best removed with chemical anti-oxidation agents, and if that does not help, a (very) soft metal brush, or maybe very fine grain sandpaper, applied with as little pressure as possible of course. A screwdriver will easily scratch surfaces or bend contacts, both of which will cause the encoder to drop out again sooner than later.
