Einleitung

Cooling can become an issue for your computer when the fan is not able to get the job done, it can be slow or broken entirely. This guide will help you replace the slow or stopped fan to help reduce the temperatures in your computer.

  1. VZHtnkIHGHoBhgKg
    VZHtnkIHGHoBhgKg
    kHDt4DDPMrufYnNq

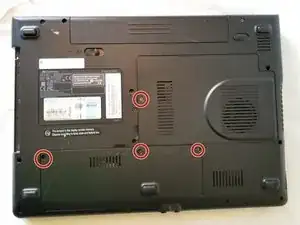

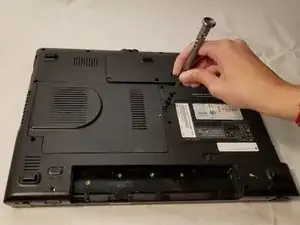

    • Using the Phillips #1 screwdriver, remove the four 6mm screws on the back of the laptop.

  2. eeoroR1cenRYAlDC
    eeoroR1cenRYAlDC
    vHsIJoHCdR3eTAhu

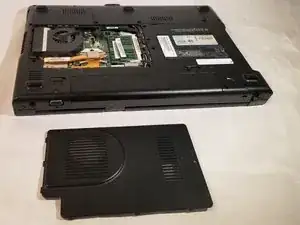

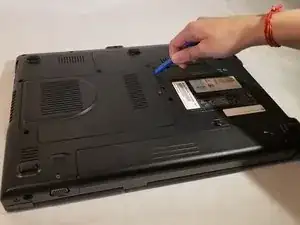

    • Insert the plastic prying tool and pry the back panel off starting at an edge and moving your way around it.

  3. uiRADjeOOnZlOlfM
    uiRADjeOOnZlOlfM
    SbLRofDuGGU1ctI3

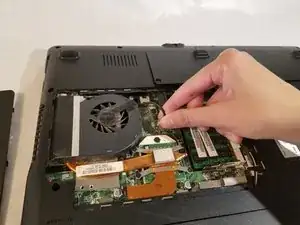

    • Remove the header by pulling on it with two fingers.

  4. VqkvvbonwPF3WEMi

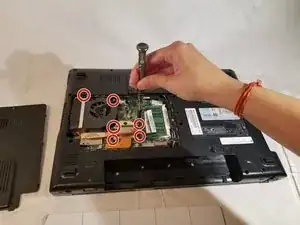

    • Remove the six 2.5mm screws using a Phillips #1 screwdriver.

  5. qPwXZnChoAV3gXHx

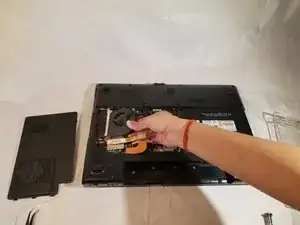

    • Remove the fan by moving it to the side and lifting it out of the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
