CR-10S BL Touch Install

Geschrieben von: Tiny Machines 3D
  • Kommentare: 5
CR-10S BL Touch Install

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

Keine Schätzung

Einleitung

For this guide, we are using an older CR-10 Mini that has been updated with the same motherboard as a CR-10S. Start by removing the control box and placing it in a well lit place where you can sit comfortably.

Read through these steps before starting:

  • Review the entire process before removing one component from your machine. You want to make sure you are comfortable and capable performing the tasks
  • Confirm that you have USB connectivity with your machine. You can try to flash the mainboard firmware first. Then, if there is an issue, you still have a working machine and can resolve the USB issue before upgrading.
  • Make sure you have the time and tools needed for the upgrade. It’s no fun to get halfway through a task and have to stop because you’re missing something.

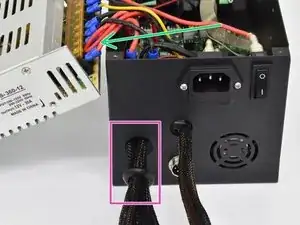

  1. HmbOg3E6GToSho4n
    HmbOg3E6GToSho4n
    kGT4vRxw25GLDLaG
    JZ1F1ZjxNSQ41Kda

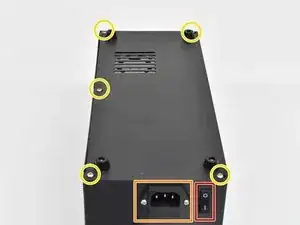

    • Before you begin...

    • Turn the power switch to OFF

    • Unplug the power cable

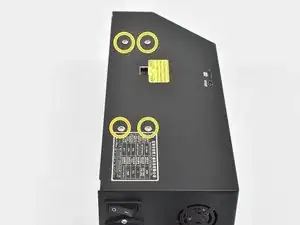

    • Using an M2 hex, remove the 5 button head screws holding the control box bottom cover on.

    • using an M2.5 hex, remove the 4 button head screws holding the power supply to the control box.

    • Lay the power supply to the side as shown.

    • Remove the grommet from the rear of the control box and pull back a few inches as shown.

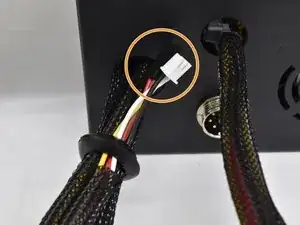

  2. UCOpaBc5LrttYOjp
    UCOpaBc5LrttYOjp
    FuovLPAAaKBNeOJ3
    pXTtHXWQKhoWkQBn

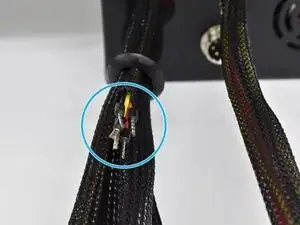

    • With the grommet loose, you can feed harness A through the grommet with the 2 and 3 pin connector going first.

    • Feed it through the hole in the rear of the control box.

    • Leave 4-5 inches of the loose pins and reinstall the grommet.

    • Make sure the grommet is fully seated into the hold.

  3. hgDulmKG34pODEGQ

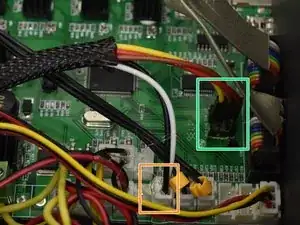

    hgDulmKG34pODEGQ
    1sDAJUJiUXcx4Rau
    ASHrYfokQlH4VjSf

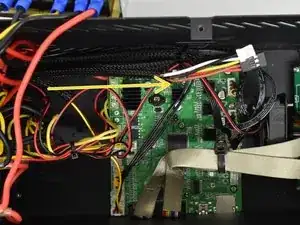

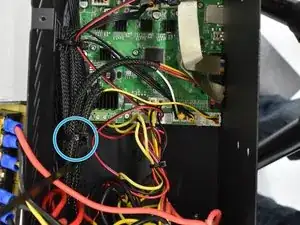

    • After feeding harness A into the control box, note where everything is connected in case you have remove things like the LCD connections to access the new connection points.

    • Plug in the 3 pin connector to D11 row with the red wire on the V pin. For CR-10S machines, it is the pin closest to the LCD connections.

    • Unplug the Z end stop wires from the motherboard (not shown)

    • Plug in the 2 pin connector where the original Z end stop was plugged in. This is Z- for CR-10S machines.

    • Hot glue is optional.

    • Zip tie harness A to the original harness group for strain relief.

    At step 1b it should note that on some older CR-10 and CR-10s models, some may have loose wires that handle lots of current so check all connections on psu, mosfet, and motherboard, for discoloration while you have the control box open

    Byron clarkson -

  4. 4MXjAl3YGOICjRuO
    4MXjAl3YGOICjRuO
    ydFphBpoROWmBa3o
    iXEquoCWeBYGHygx

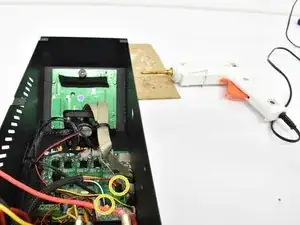

    • If you're going to glue the new connections in, do it now.

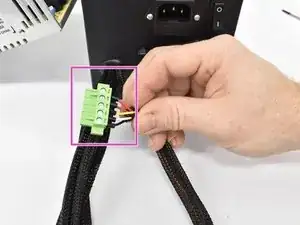

    • Install the male green phoenix connector onto harness A.

    • Using a flat head screwdriver, loosen the terminals 3-4 turns then insert the wires into the

    • Color order does not matter but the other side of the harness HAS to match. When tightening the screw terminals, feel for when the wire end is contacted and do not overtighten. Give each wire a very gentle pull to test that they are all firmly connected.

    • Reinstall the power supply and tighten the screws.

    • Reinstall the bottom cover and tigthen the screws.

    • The vent holes should be positioned over the power supply.

  5. X2RnMAMwxXY2sE1q

    • Reinstall the power supply and tighten the screws.

    • Reinstall the bottom cover and tigthen the screws.

    • The vent holes should be positioned over the power supply.

  6. MiFBxTvcTVf4bar6
    MiFBxTvcTVf4bar6
    XZThWnPIQkAHVBoQ
    VPXDA3rUjUmw4AoE

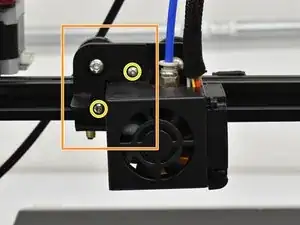

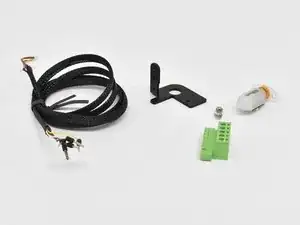

    • Your kit includes all necessary hardware for the install.

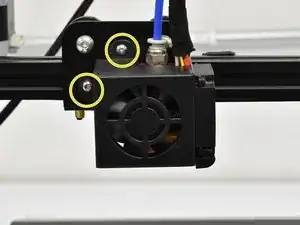

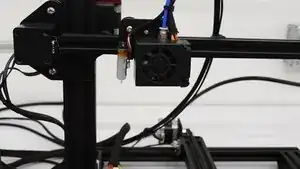

    • Using an M2 hex, remove the 2 button head screws holding the hot end shroud on.

    • Install the bracket using the provided M3x8 (or 3x10) screws.

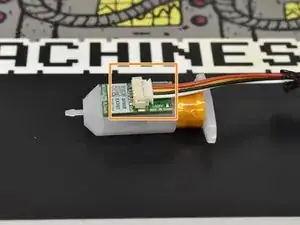

  7. HCTVxDuDIURZqxeJ

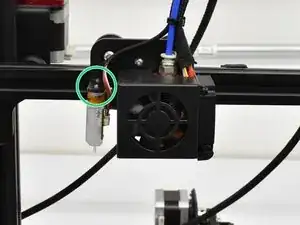

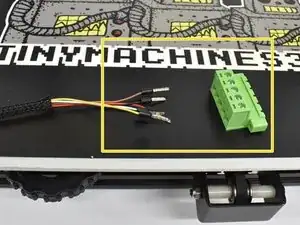

    HCTVxDuDIURZqxeJ
    4CRLpHXLpxx4HAIn
    XDgCZreNTIDCH1yf

    • Plug the small end connector into the probe. It will only plug in one way so do not force it.

    • Install the probe as shown with the connection facting the hot end. Use an M2 hex to install the provided M3x6 screws.

    • You can now install the pre-crimped wires into the phoenix connector. Match the color order from the motherboard side.

    • After tigtening all screws, give each wire a gentle tug to make sure they are tight.

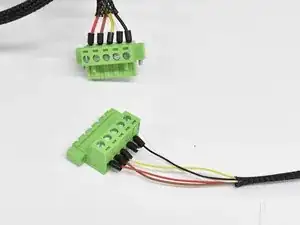

  8. Ee5gsFwGwfMuLTr5
    Ee5gsFwGwfMuLTr5
    QxYCiGl4gfEcWKpb
    QPpnHMjQlHcSmkF2

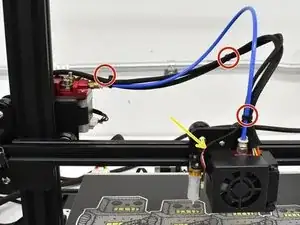

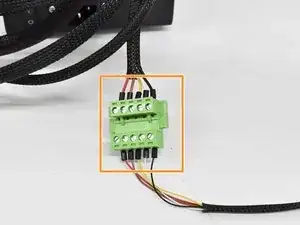

    • Double check that the colors match from the motherboard side to the probe side and plug the motherboard side into the probe side.

    • Provided zip ties can be used to attach the new harness to the original in the locations shown.

    • Be sure to leave a little slack in the probe harness so it is not pulled on when the X axis moves back and forth.

    • Please contact us regarding firmware if you have purchased our BL Touch Kit for the CR-10S.

  10. When you first power your machine on after this install and firmware has been loaded, the probe will cycle through a self test.

    • When you first power your machine on after this install and firmware has been loaded, the probe will cycle through a self test.

    • Command the machine to auto home and test the probe out with your finger to make sure it triggers the Z end stop and stops Z travel. If so, you have everything connected correctly and you're ready to go through Leveling Setup!

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Tiny Machines 3D

Mitglied seit: 16/11/19

2745 Reputation

4 Kommentare

For the CR-10S, the 3 wire and 2 wire plug use this diagram: https://imgur.com/a/qvfqlAn. It can be hard to find the D11. Make sure the red wire is pointed towards the outside of the motherboard edge. The 2 wire plug will require you to cut the glue from the original Z connector, use a razor blade to do this. Follow the rest of the directions. The software you download and the hex file: Make sure you select the correct install as multiple come in the hex file. I only had one COM to select and the Baud was automatic. I did not plug the power cord back into the control box. I connected the box via USB and it powered on over USB. I did the firmware update like this without issue. The update took about 2 minutes and then your LCD screen will restart. Reset the items per the instructions (you will get an odd beep for each item and that's it). Once done, plug in your power cord and turn on the machine and then remove the USB. Turn machine on and Auto Home it and test the probe which should stop Z axis. Good Luck

Paul Georgelas -

Lastly, this is an excellent install with great customer support. Took me an hour to do while taking my time. I recommend this to anyone with a CR-10

Paul Georgelas -

Hi, I'm asking for help installing the CR-10S BL Touch

I assembled the wires on the motherboard and updated version 1.1.6BL_V3

The problem is that the sensor does not stop the Z axis

Thanks

Freddy Krueger -

Try switching the pins on the two pin z stop connector. I was wiring a CR touch and that did the trick for me. (A sharp pin or very small flathead can depress the catch and allow you to slide the wire end from the plastic bracket so you can slide them out and switch)

Larry Whichone -
