Einleitung
This guide describes the steps necessary to replace the motherboard of the system. This board contains the circuitry for the amplification, power, and output.
-
-
Using a pair of pliers, squeeze the retainer for the power cord as shown and pull it toward the external side the panel.
-
It may require some wiggling, but it should slip out of the hole and then off of the cord.
-
-
-
Remove 2 screws from each side of the heatsink. These must be accessed from directly above the device.
-

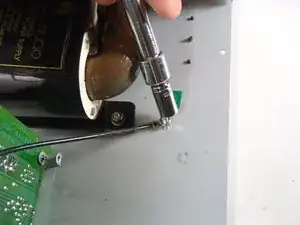

Remove the green grounding wire from the mounting screw.
-
-
-

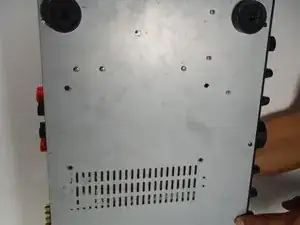

With the amplifier on it's side, remove the 4 screws that hold the motherboard frame to the main case.
-
-
-
Unscrew ground wire from main case.
-
De solder 4 wires coming from transformer.
-

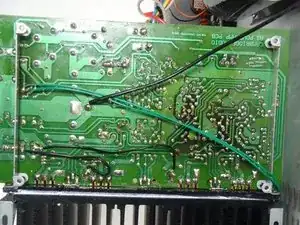

The motherboard can now be lifted from the case. Any part that needs to be removed from it can be de-soldered.
-
To reassemble your device, follow these instructions in reverse order.
