Campbell Hausfeld FP204800 Thumb Screw Drain Replacement

Geschrieben von: Eric
  • Kommentare: 0
Campbell Hausfeld FP204800 Thumb Screw Drain Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

5 - 10 Minuten

Einleitung

In order to complete this repair properly, you will need teflon tape to seal the threads of the thumb screw drain. Although this step seems unnecessary in some cases, it will make your compressor run more efficiently without excessive starting and stopping. The replacement of thumb screw drain is straightforward.

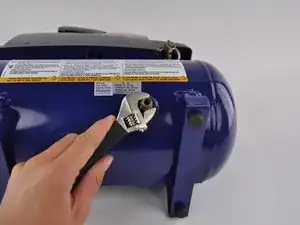

  1. JQayjLk1EGkbZRZI

    • Remove the thumb screw drain from the bottom of the compressor using a Smart Wrench.

    • The thumb screw may not easily be removed due to corrosion.

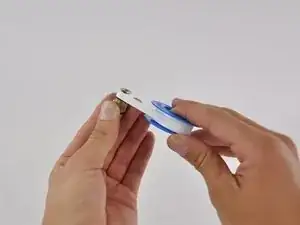

  2. wtTZoCZsG26kkGju

    • Apply teflon tape to the replacement thumb screw drain.

    • The teflon tape should be wound tightly around the entire threaded portion of the thumb screw drain.

    • When you reassemble the thumb screw drain on the compressor, make sure to fully tighten it using a Smart Wrench.

Abschluss

To reassemble your device, follow these instructions in reverse order.
