Canary CAN100USBK Audio and USB PCB Board Replacement

Geschrieben von: Kristopher Gates
  • Kommentare: 2
Canary CAN100USBK Audio and USB PCB Board Replacement

Schwierigkeitsgrad

Easy

Schritte

12

Zeitaufwand

15 Minuten

Einleitung

The audio jack is not used for audio, but for streaming setup data from your phone to the Canary, so it is very important to replace if damaged.

Once you remove the bottom casing and Ethernet PCB board, the audio and USB PCB board becomes accessible. Remember to pull on the power connector itself and not the wires to avoid damage.

If either the audio jack or USB type C connector are damaged, this guide will show you how to replace the board.

A Phillips #0 screwdriver can be used for both screws.

  1. OPTWB51CEVvoWhAU
    OPTWB51CEVvoWhAU
    kZyESEMxuCFDyPmO

    • Grip the rubber ring with your fingers and pull up.

    • Rotate the Canary as you pull out one tab at a time.

  2. 1fRLBp3uP32YsV3q

    • Use your Phillips #0 screwdriver to remove the four 6mm screws.

  3. wuLst6dohdVhT3Lt
    wuLst6dohdVhT3Lt
    cWQTEGKnYn4ifRws
    DlY3rb2lcHiWXdy3

    • Use the flat end of the spudger to carefully pry off the bottom casing.

    • Alternate pushing up on the left and right sides until the clips holding the case in are visible.

  4. TxsILFuLFHIFvrpA
    TxsILFuLFHIFvrpA
    HWpGSyUTNqquruGV

    • Do not yank the bottom off or you may damage the ribbon cable or the ZIF connector.

    • Carefully remove the bottom casing by gripping it on both sides and pulling straight up.

  5. p32bCDuoHumiD1Hp
    p32bCDuoHumiD1Hp
    FGQLTFHKOWyYZUId

    • Use the pointed end of the spudger to flip up the small retaining flap on the ZIF (zero insertion force) connector.

    • Pull the ribbon cable out towards the device.

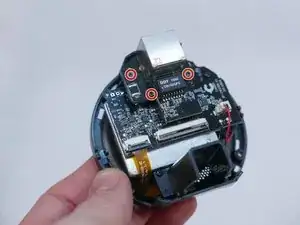

  6. 35VrstyjuDvNUmAw

    • Use your Phillips #0 screwdriver to remove the three 5mm screws.

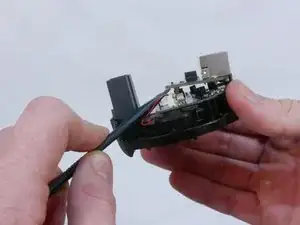

  7. 1QOUauXlnJP5GEZI
    1QOUauXlnJP5GEZI
    OSX1mWceo2IhEgYr

    • Place the flat end of the spudger underneath the Ethernet PCB board and slowly pry up until it's loose.

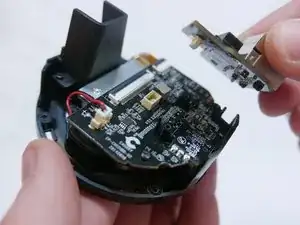

  8. iOP1MLtxKPYsgAjj

    • Carefully pull the Ethernet PCB board away from the board that sits underneath.

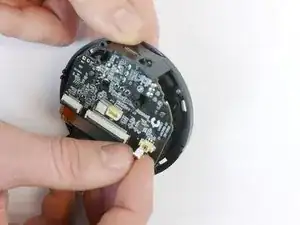

  9. 4r1nbPHVbmeayQf1

    • Using your fingernails, wiggle the power connector back and forth until it becomes loose.

    • Pull the power connector straight out of the socket.

    • Pull only on the power connector and not the wires themselves to prevent damage.

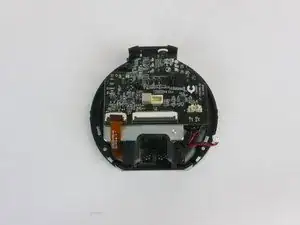

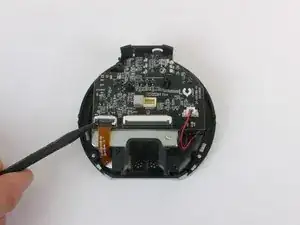

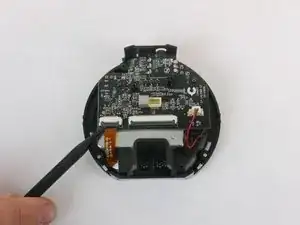

  10. yMwUqRuLYXJUHF1U
    yMwUqRuLYXJUHF1U
    PeIdEUqXPKRfdeJN
    euJVHTj6EpP52Uxv

    • Use the spudger to pry up the retaining flap of the ZIF connector.

    • Disconnect the ribbon cable.

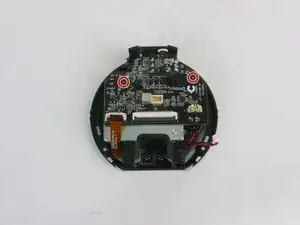

  11. EUAklIPWbCdG4Hhn

    • Remove the two Phillips #0 5mm screws.

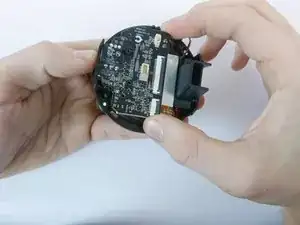

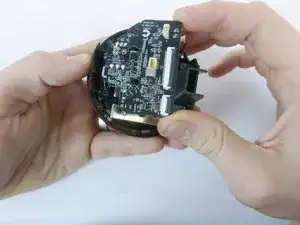

  12. wURKB5bxiDWlGLvA
    wURKB5bxiDWlGLvA
    HiXCGnPKvAiXs1ol

    • Pull the board away from the bottom casing by lifting the end closest to the chimney up.

Abschluss

To reassemble your device, follow these instructions in reverse order.
