Canon AE-1 SLR Lens Mount Replacement

Geschrieben von: Joe Blumberg
  • Kommentare: 0
Canon AE-1 SLR Lens Mount Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will teach the user how to remove a damaged SLR lens mount on the Cannon AE-1. The SLR lens mount allows the user to connect different lens to the Canon AE-1.

  1. cxZAKOW1jPcFriJ4
    cxZAKOW1jPcFriJ4
    VCPxDRkBekqo2ZXh

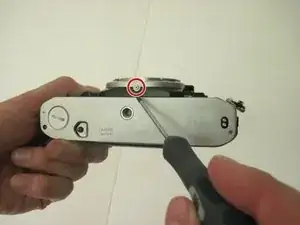

    • Remove the first set of two screws from the lens outer casing using a Phillips #00 screwdriver.

    • The first set of screws is located on the front and bottom of the lens casing.

  2. QL3TnR1B64OlUJZc
    QL3TnR1B64OlUJZc
    V3vshaJKBZNalqLl

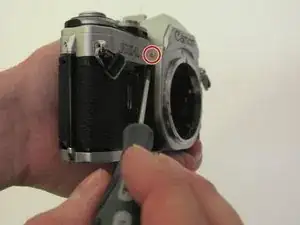

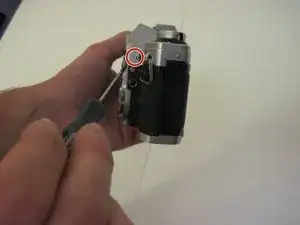

    • Remove the remaining two screws from the right and left sides of the lens outer casing using a Phillips #00 screwdriver.

  3. OrntiEyTiRAOIfDK

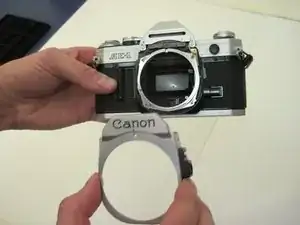

    • Remove the lens casing by pulling it away from the body of the camera.

  4. exbOU4QpxTQN3iuM

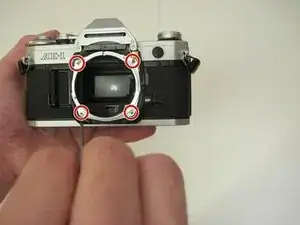

    • Remove the four #00 screws from the SLR lens mount using a Phillips #00 screwdriver.

  5. GTrFZRNRPLFFHd1j
    GTrFZRNRPLFFHd1j
    1CLlqxNsVLJMGFlm
    WRneraWmPvS1AaPH

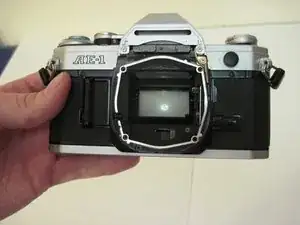

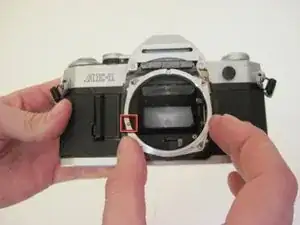

    • Pull the SLR lens mount away from the body of the camera.

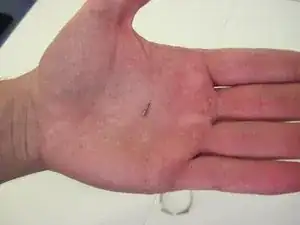

    • Be aware that a pin will fall out when the SLR lens mount is removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
