Einleitung

  1. IxWoIR41FAMNrQII
    IxWoIR41FAMNrQII
    V6Whh2xQKKPbGi3k
    • Pull up on both sides of the the eyepiece cap. It should come off with little pressure.

  2. Fqw1Kq4jDy1eQ5ck
    • Remove the two screws hidden under the viewfinder eyepiece cap.

  3. 4rajCQmAD1hUBADo
    4rajCQmAD1hUBADo
    1rVUGtwUTVBbSypV
    SpKRIWRi161qDMu4
    • Peel off the rubber grip on the back by grasping one of the corners and pulling it away from the camera body.

    • Once removed, a hidden screw is revealed.

    • Remove both screws from the rear of the camera.

  4. fKUHrFQxIcNuO6rI
    • Remove the two indicated screws from the bottom of the camera.

  5. GAJoJ4Vk22fU3mQT
    GAJoJ4Vk22fU3mQT
    y3sFhvSJulxk4VVT
    xXq5QVGnkbVtHkse
    • When lifting the panel, make sure not to lift it too high, since you'll run the risk of tearing the cable, or damaging the connector on the board.

    • Flip the lock on the flex cable connector up with a spudger.

    • The front panel should pop off, now that the cable has been disconnected.

    • When reassembling the device, make sure to insert the left side of the front panel first, since it has a small lip that needs to fit under the left part of the camera case.

  6. OiDJDgFtEvDgCf1g
    OiDJDgFtEvDgCf1g
    HDBCEWe5tqeNEMBU
    JbPSFrxTvoRrKRho
    • Disconnect all the indicated connectors by opening their latches.

    • Remove the flex cable that connects the logic board to the secondary control board.

    • Pull the small green connector out of its socket. Be careful when removing it, as it is possible to tear the tiny wires running into the connector.

    • Disconnect the two hidden connectors under the top connector indicated in pink.

    • Disconnect the third hidden connector.

  7. wHRCOMCZdwRFEvR4
    wHRCOMCZdwRFEvR4
    gBPRt2UpSOwHSHnB
    • Remove the three screws from the edges of the board.

    • Flip the board up and out so that the ground connection can be unscrewed.

  8. yIVdYAXgmP5VVZLL
    yIVdYAXgmP5VVZLL
    Fr1QutALvktREl61
    JIZSsnJQMCCw6aQd
    • Open the connector for the CF slot.

    • Remove the screw that attaches the bottom of the CF slot.

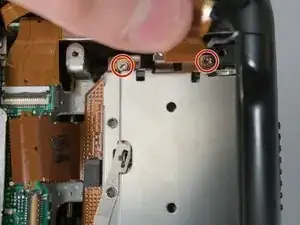

    • Remove the two last screws attaching the top of the CF slot.

    • Remove the CF slot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
