Canon EOS 30 Grip Replacement

Remove the two 4.8 mm black screws above the lens on the front of the camera.

Remove the 4.3 mm black screw under the lens ring, and the 4.8 mm black screw under the camera.

Remove the 4.8 mm black screw on the left side of the camera.

Remove the front panel by lifting it away from the camera's body.

Slide the outer eyepiece upward to remove it.

Remove the two 4.75 mm black screws located on the top of the camera.

Remove the four 4.3 mm black screws near the bottom corners of the eyepiece at the back of the camera.

Slowly separate the top panel from the camera by pushing it upward.

Remove two 6.5 mm black screws from the panel.

Remove the plastic remote control socket cap by pulling it straight out.

Slide panel toward bottom of camera to remove.

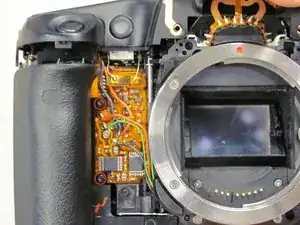

Remove the two 5.5 mm screws from front of camera.

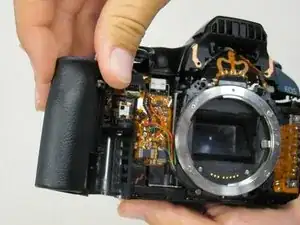

Remove grip panel.
